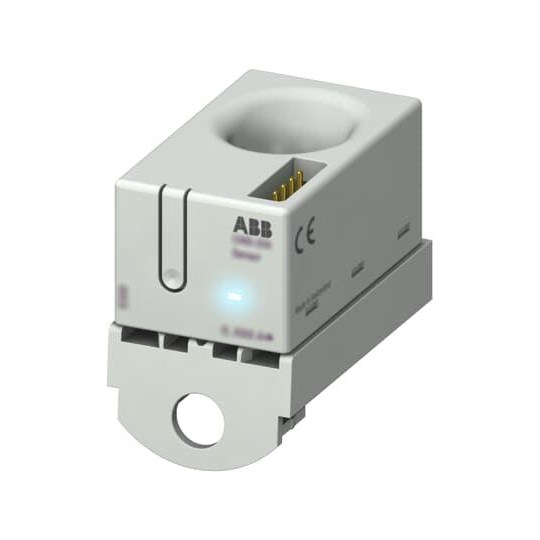

ABB CMS200S8 SOLID-CORE CURRENT SENSOR 25mm FOR S800 DEVICES, MEASURING RANGE 0.1-160A

The Solid-core current sensor is designed for S800 devices and features cage terminals. It has a current measuring range of 0.1-160A and a current accuracy class of 0.5. The peak value of the distorted wave-form is 1.5. With a rated operational voltage of 690VAC/1500VDC and a frequency of 50Hz, this sensor can operate in temperatures ranging from -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current, including alternating (AC), direct (DC), or mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with this sensor is 15mm, and its dimensions are 38.5Hx26.5Wx43Dmm.
