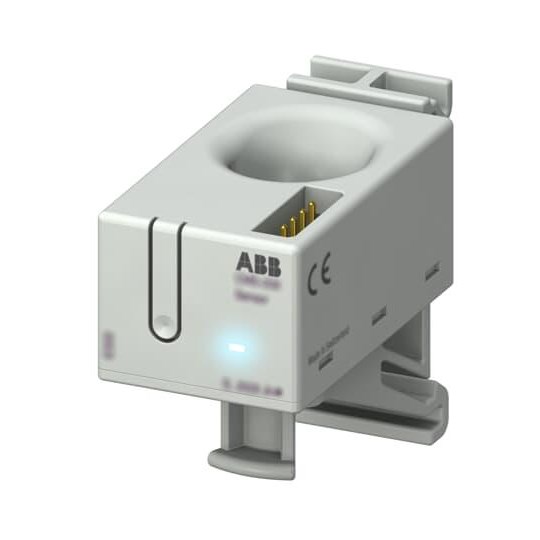

ABB CMS200DR SOLID-CORE CURRENT SENSOR 25mm FOR DIN RAIL MOUNTING, MEASURING RANGE 0.1-160A

The solid-core current sensor is designed for DIN rail mounting and has a current measuring range of 0.1-160A. It has a current accuracy class of 0.5, with a peak value of the distorted wave-form at 1.5. The sensor operates at a rated operational voltage of 690VAC/1500VDC, with a frequency of 50Hz and an operating temperature range of -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current - alternating (AC), direct (DC), or mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with this sensor is 15mm, and its dimensions are 43.2Hx25.4Wx43Dmm.
