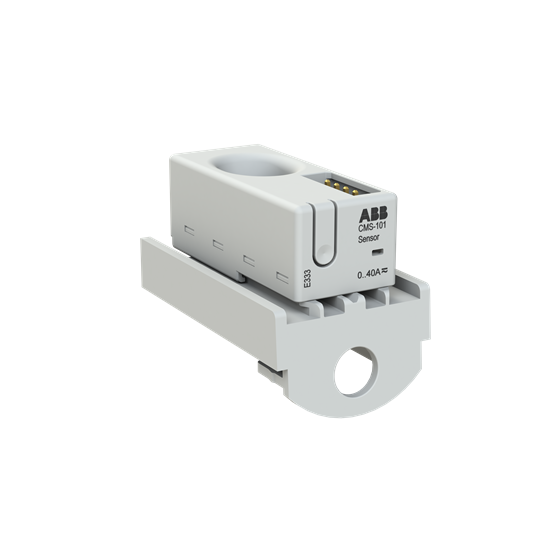

ABB CMS101S8 SOLID-CORE CURRENT SENSOR 18mm FOR S800 DEVICES, MEASURING RANGE 0.1-40A

The Solid-core current sensor for S800 devices with cage terminals has a current measuring range of 0.1-40A. It has a current accuracy class of 0.5 and can handle peak values of distorted wave-forms up to 3. The sensor is designed to operate at a rated operational voltage of 690VAC/1500VDC, with a frequency of 50Hz. It has an operating temperature range from -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current, including alternating (AC), direct (DC), and mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with this sensor is 10mm. The dimensions of the sensor are 31.8Hx26.5Wx45.5Dmm. This solid-core current sensor is ideal for use with S800 devices and provides accurate measurements across various types of currents, making it suitable for a wide range of applications.
