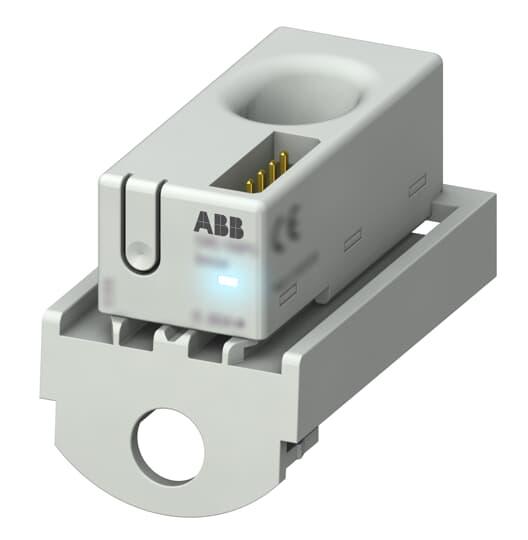

ABB CMS100S8 SOLID-CORE CURRENT SENSOR 18mm FOR S800 DEVICES, MEASURING RANGE 0.1-80A

The Solid-core current sensor is designed for S800 devices and features cage terminals. It has a current measuring range of 0.1-80A and a current accuracy class of 0.5. The peak value of the distorted wave-form is 1.5. This sensor has a rated operational voltage of 690VAC/1500VDC, with a frequency of 50Hz. It can operate in temperatures ranging from -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current, including alternating (AC), direct (DC), or mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with this sensor is 10mm. The dimensions of the sensor are 31.8Hx26.5Wx45.5Dmm.
