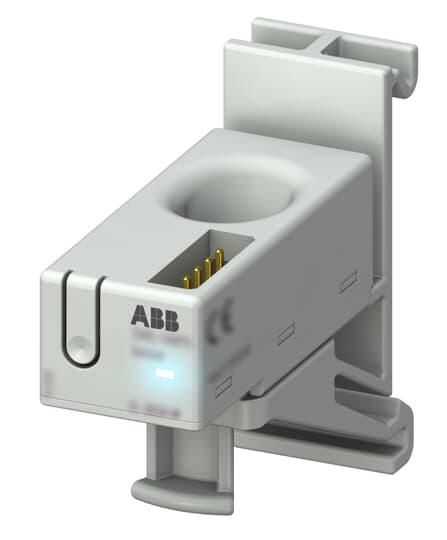

ABB CMS100DR SOLID-CORE CURRENT SENSOR 18mm FOR DIN RAIL MOUNTING, MEASURING RANGE 0.1-80A

The solid-core current sensor is designed for DIN rail mounting and has a current measuring range of 0.1-80A. It has a current accuracy class of 0.5, with a peak value of the distorted wave-form at 1.5. The sensor can handle a rated operational voltage of 690VAC/1500VDC and operates at a frequency of 50Hz. It has an operating temperature range of -25 to 70°C. The CMS sensors are capable of monitoring and measuring all types of current - alternating (AC), direct (DC), or mixed (TRMS) currents. They can even measure harmonic components in the signal curve. The maximum diameter of the cable that can be used with the sensor is 10mm. In terms of dimensions, the sensor measures 43.2Hx17.4Wx51.5Dmm.
