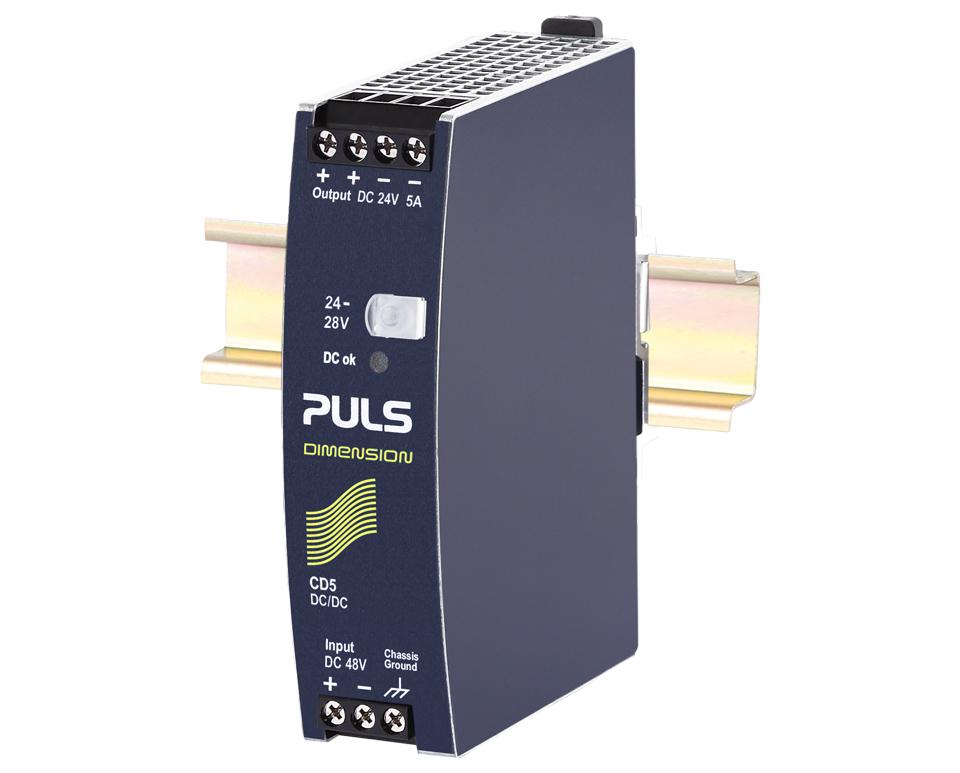

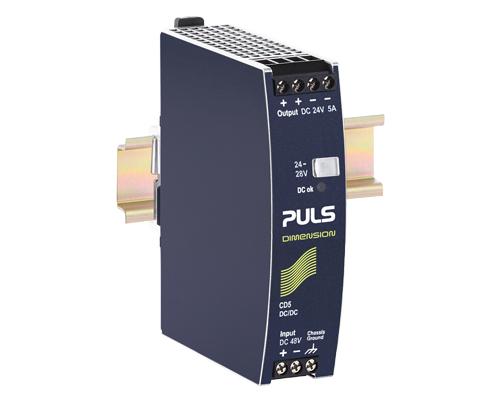

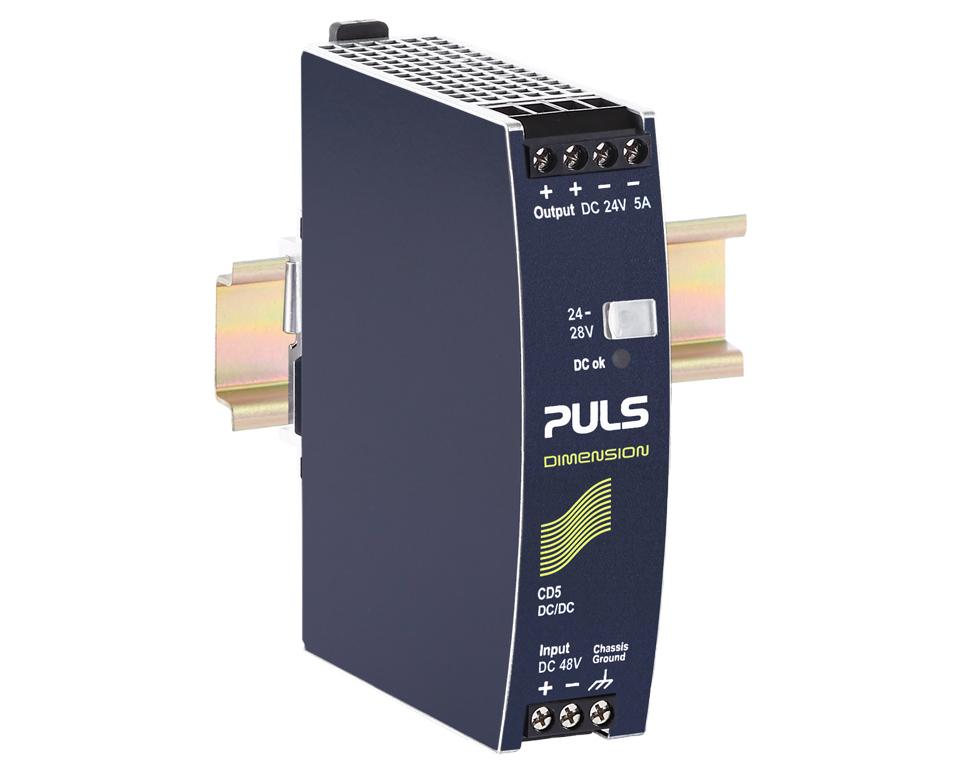

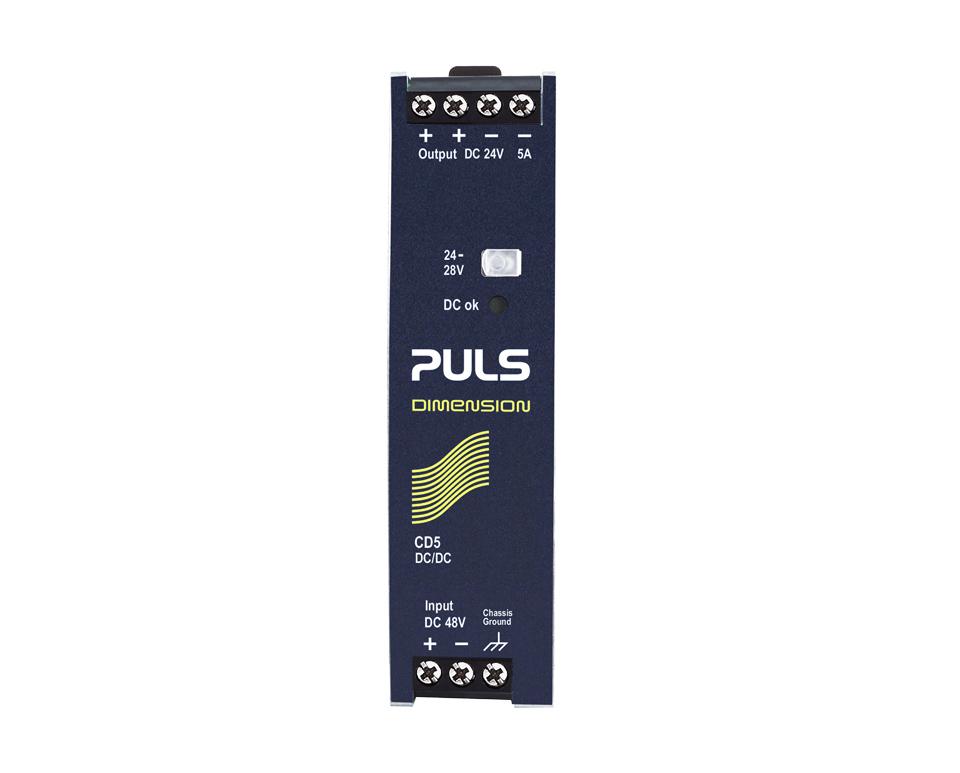

PULS DC/DC CONVERTER 24VDC 5A CD5.242

Product Code: CD5.242

This product is a 48V DC-input power supply with an isolated 24V DC output. It has a high efficiency of up to 90.3% and a compact width of only 32mm. With 20% output power reserves, it can provide full power even in temperatures ranging from -25°C to +60°C. The power supply also features a soft-start function, minimal inrush current surge, and reverse input polarity protection.

Technical Specifications

Conformal Coating No
Country of Origin China / Czech Republic
Derating 3 W/°C
Derating Temperature (°C) > +60
E Classification E-CS02
Efficiency 90.30%
Input Voltage Range DC (V) 48
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 48
Output Current Range (A) 5 - 4.3
Output Power (W) 120
Output Voltage (V) 24-28
Power Reserve Type Power Boost
Power Reserves 20%
Special Application Hazardous location, Marine
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85043121
Degree of Protection IP20
Dimensions (mm) 32W x 124H x 102D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 12.9
Range DIMENSION
Rated Current (A) 5
Series C series
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 425
