Product Code: CD5.241-S1

The 24V DC-input power supply features quick-connect spring-clamp connection terminals for easy installation. It provides an isolated 24V dc output with an efficiency of up to 90.2%. With a width of only 32mm, it is compact and space-saving. The power supply has a 20% output power reserve, ensuring reliable performance. It can operate at full power between -25°C and +60°C, making it suitable forVarious environments. The soft-start function minimizes inrush current surge during startup. Additionally, the power supply offers reverse input polarity protection and includes DC-OK and input-low relay contact features.

Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	3 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS02
Efficiency	90.20%
Input Voltage Range DC (V)	24
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	24
Output Current Range (A)	5 - 4.3
Output Power (W)	120
Output Voltage (V)	24-28
Power Reserve Type	Power Boost
Power Reserves	20%
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85043121
Degree of Protection	IP20
Dimensions (mm)	32W x 124H x 102D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	13.3
Range	DIMENSION
Rated Current (A)	5
Series	C series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, IEC 61010-1 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UL 61010-1 Canada, UL 61010-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	450

Industrial Power Supplies

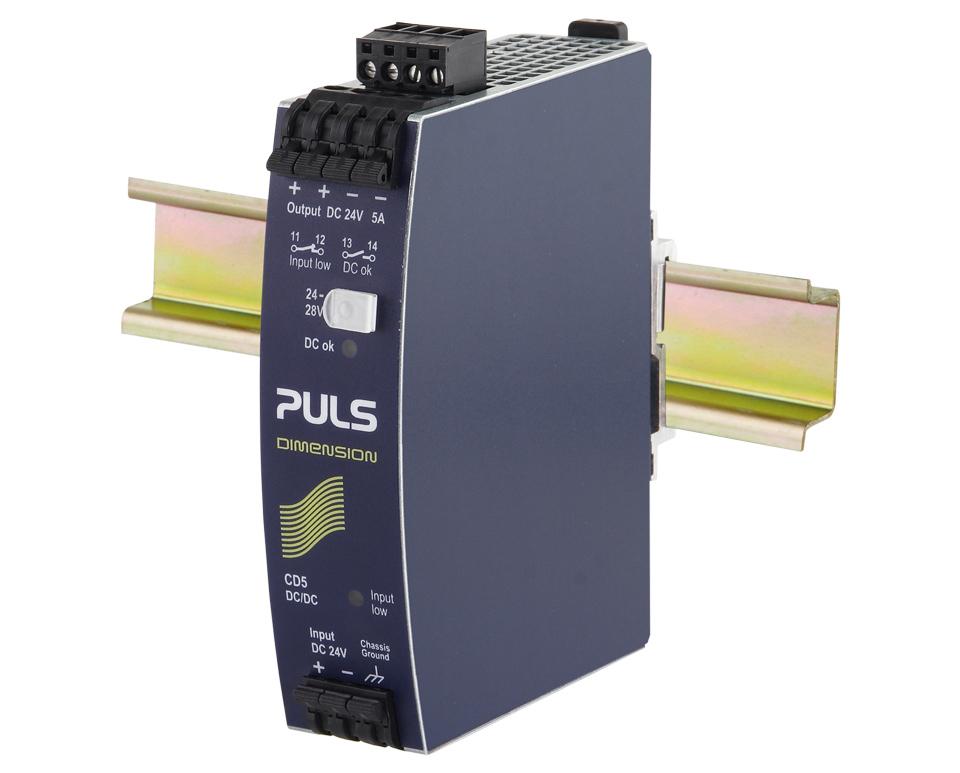

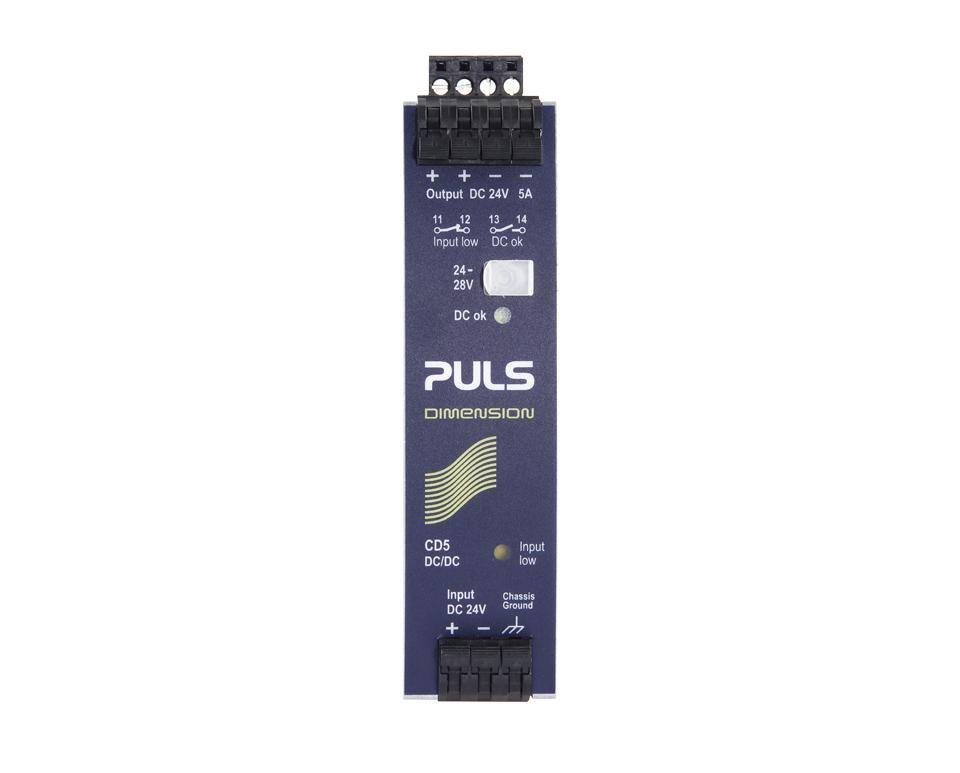

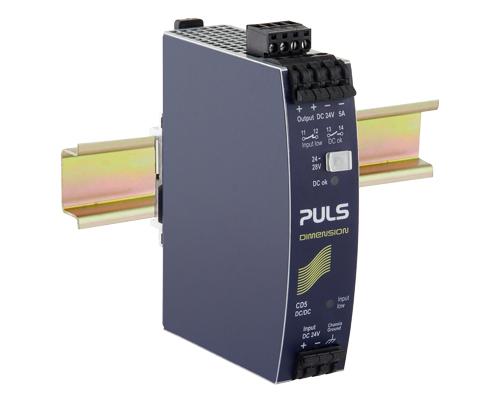

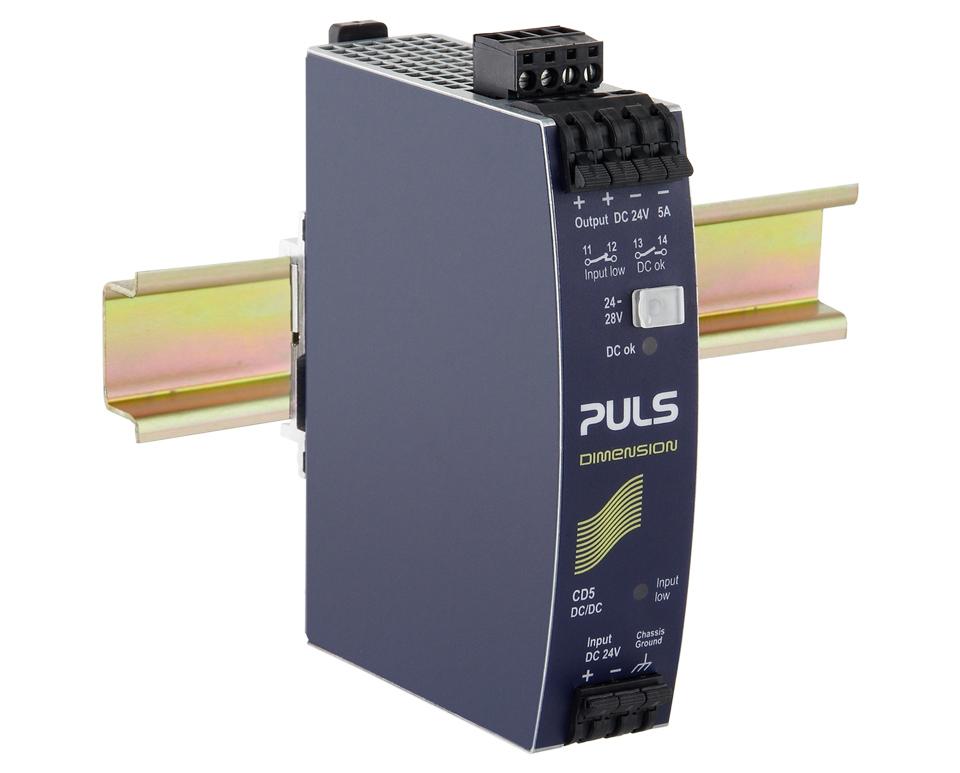

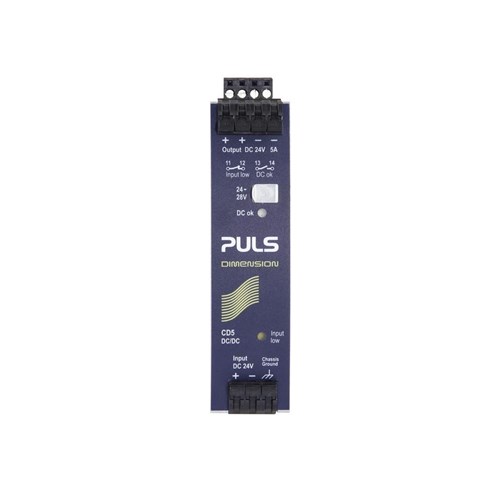

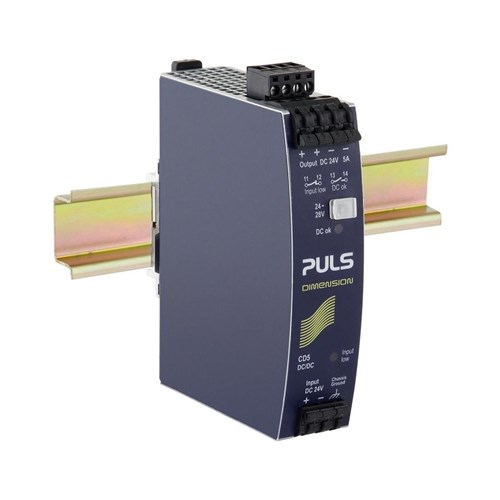

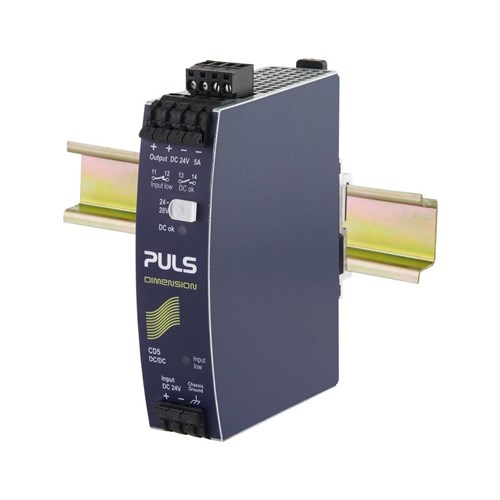

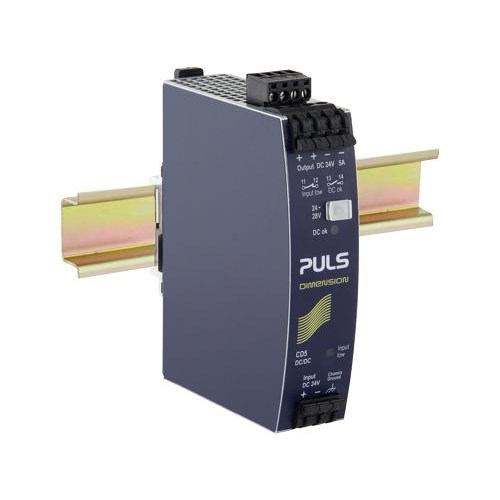

PULS DC/DC CONVERTER 24VDC 5A CD5.241-S1

Product Code: CD5.241-S1

Technical Specifications
