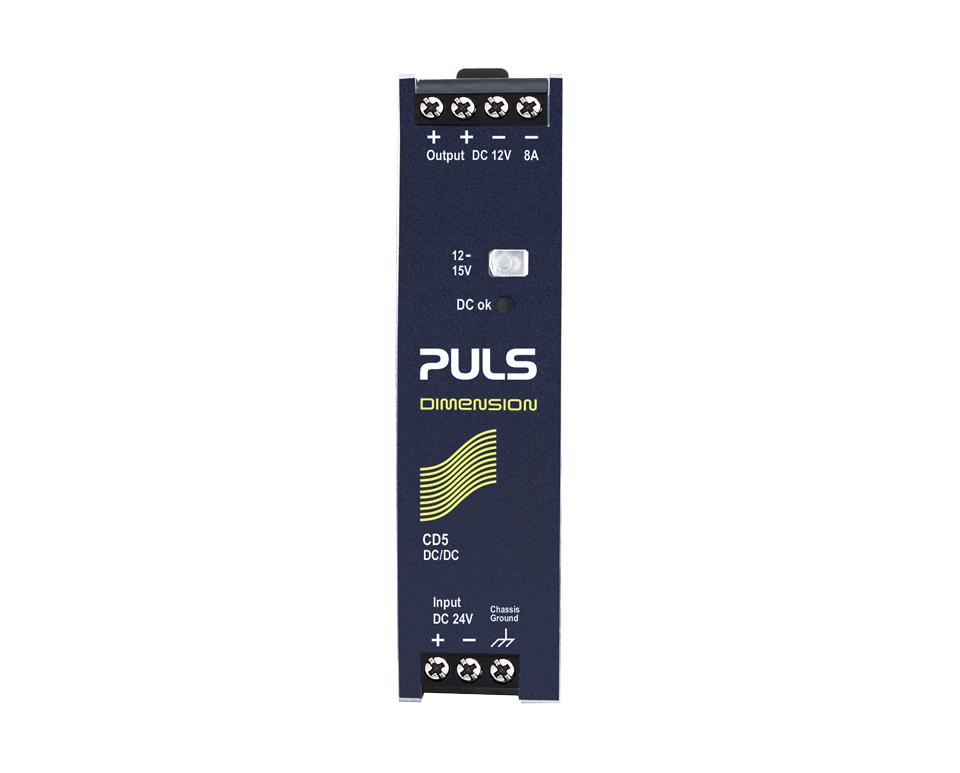

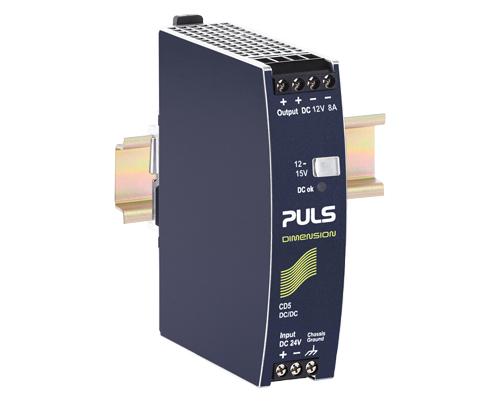

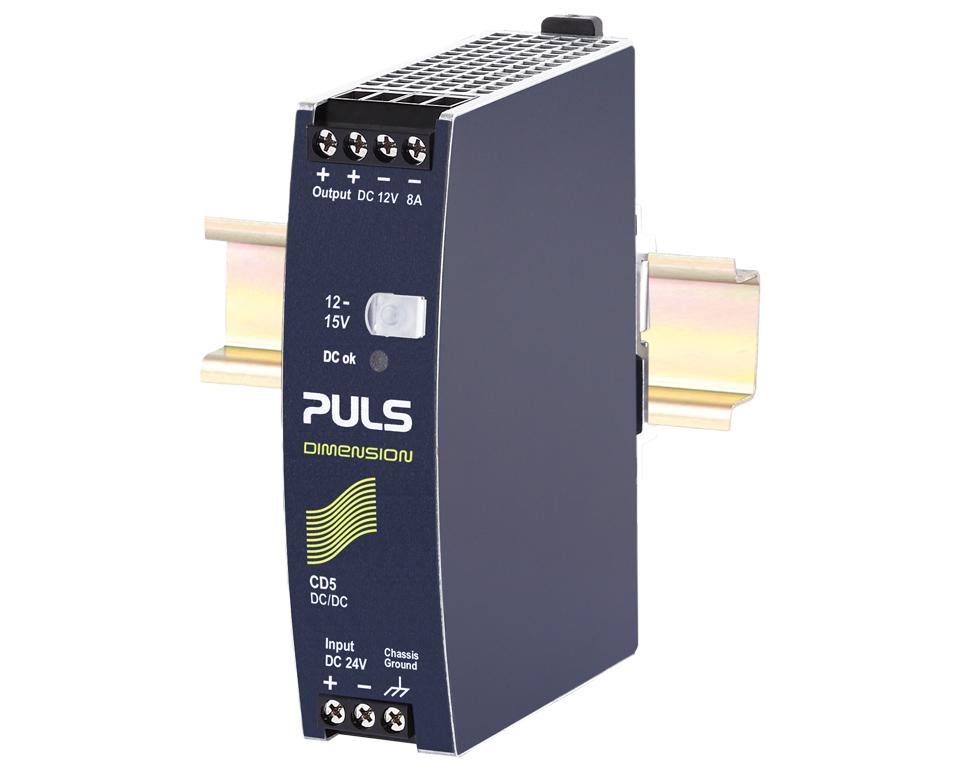

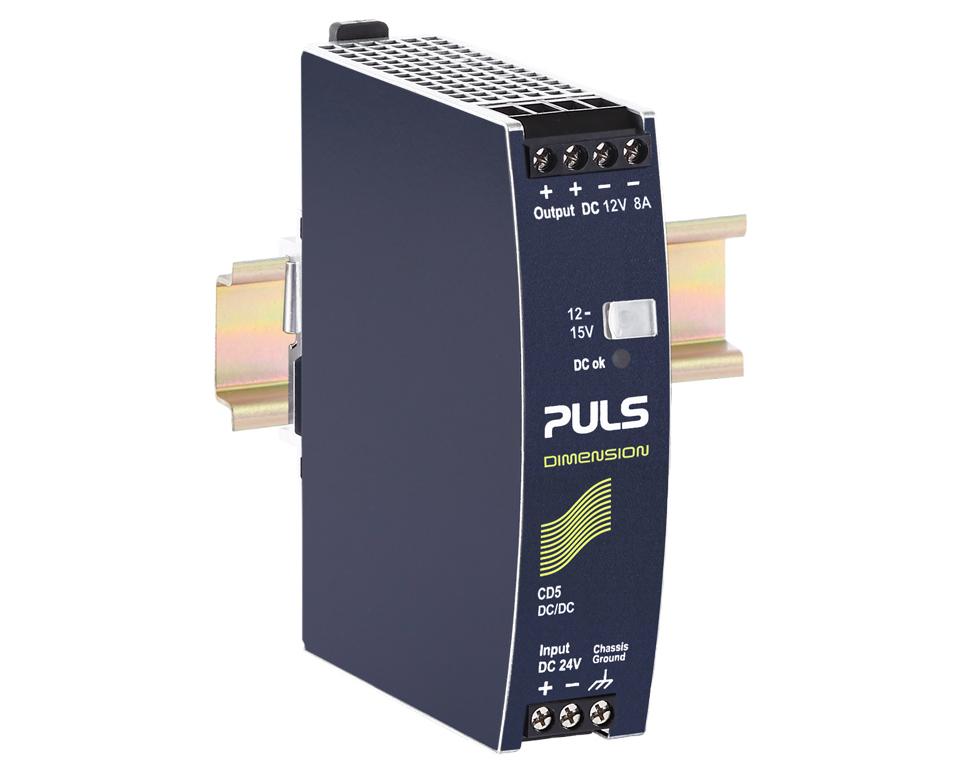

PULS DC/DC CONVERTER 12VDC 8A CD5.121

Product Code: CD5.121

This product is a 24V DC-input power supply that provides an isolated 12V DC output. It has an efficiency rating of up to 88.2% and a compact width of only 32mm. With 20% output power reserves, it ensures reliable performance. It can operate at full power in temperatures ranging from -25°C to +60°C. The soft-start function minimizes inrush current surge, while the reverse input polarity protection safeguards against incorrect connections.

Technical Specifications

Conformal Coating No
Country of Origin China / Czech Republic
Derating 2.5 W/°C
Derating Temperature (°C) > +60
E Classification E-CS02
Efficiency 88.20%
Input Voltage Range DC (V) 24
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 75
Minimum Input Voltage DC (V) 24
Output Current Range (A) 8 - 6.4
Output Power (W) 96
Output Voltage (V) 12-15
Power Reserve Type Power Boost
Power Reserves 20%
Special Application Hazardous location, Marine
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85043121
Degree of Protection IP20
Dimensions (mm) 32W x 124H x 102D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 12.8
Range DIMENSION
Rated Current (A) 8
Series C series
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 425
