Product Code: CD10.482

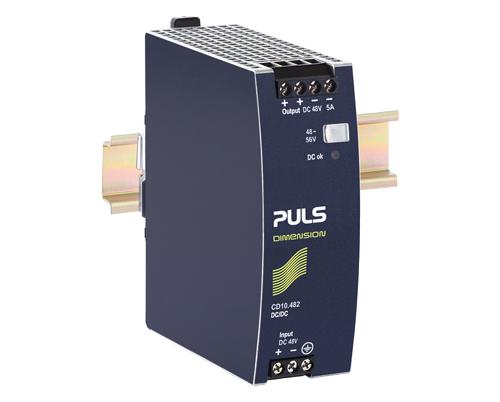

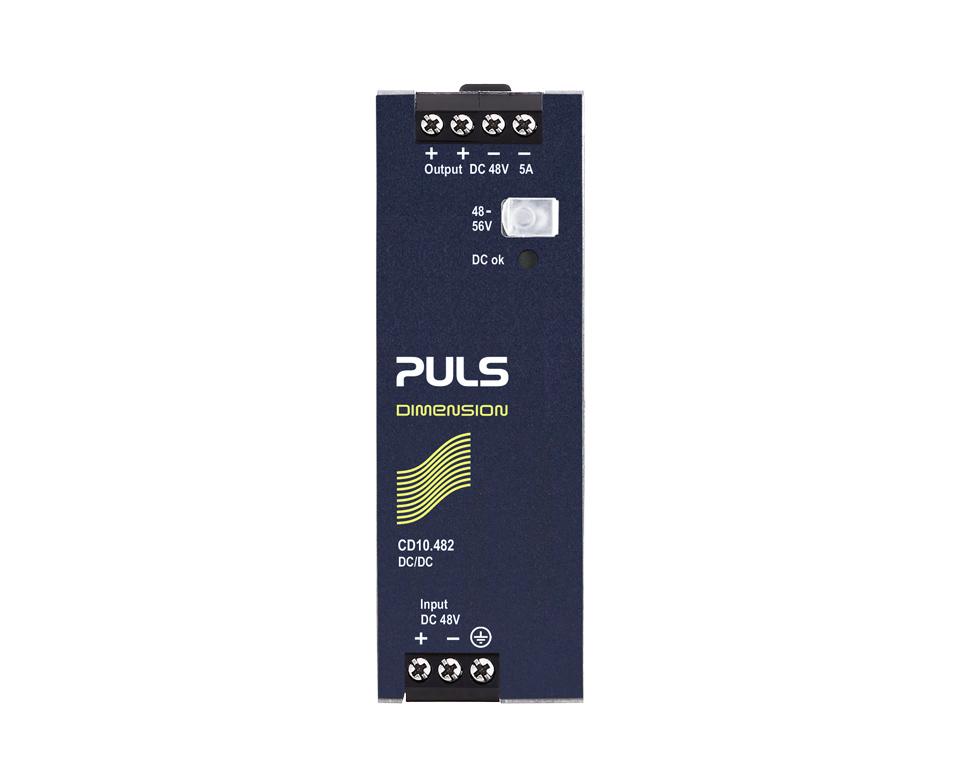

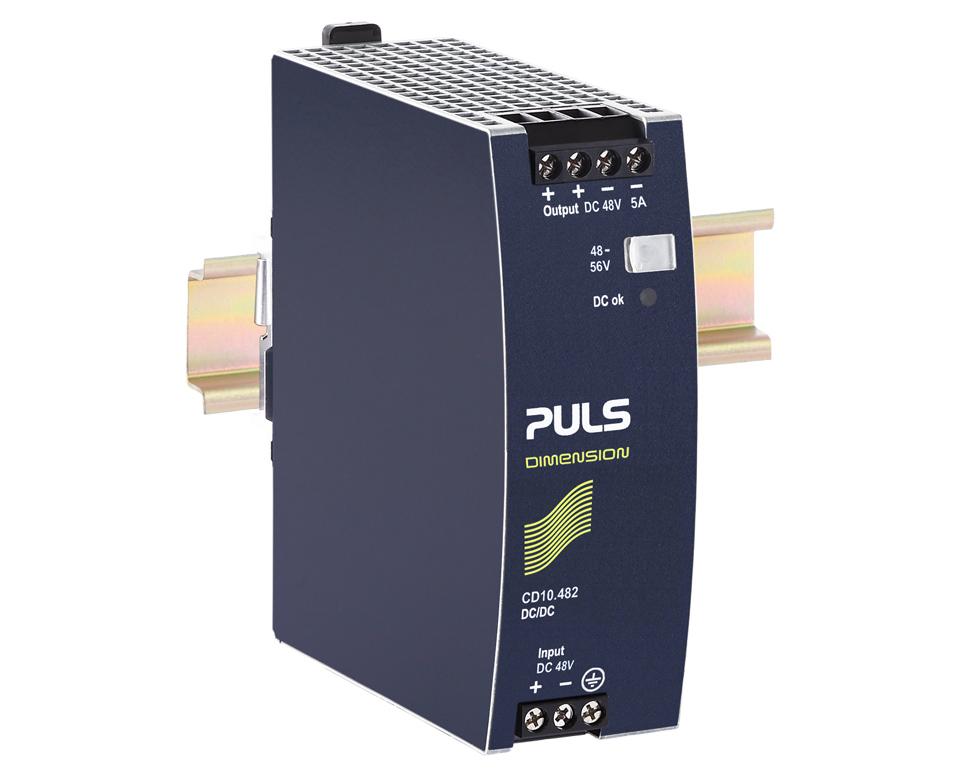

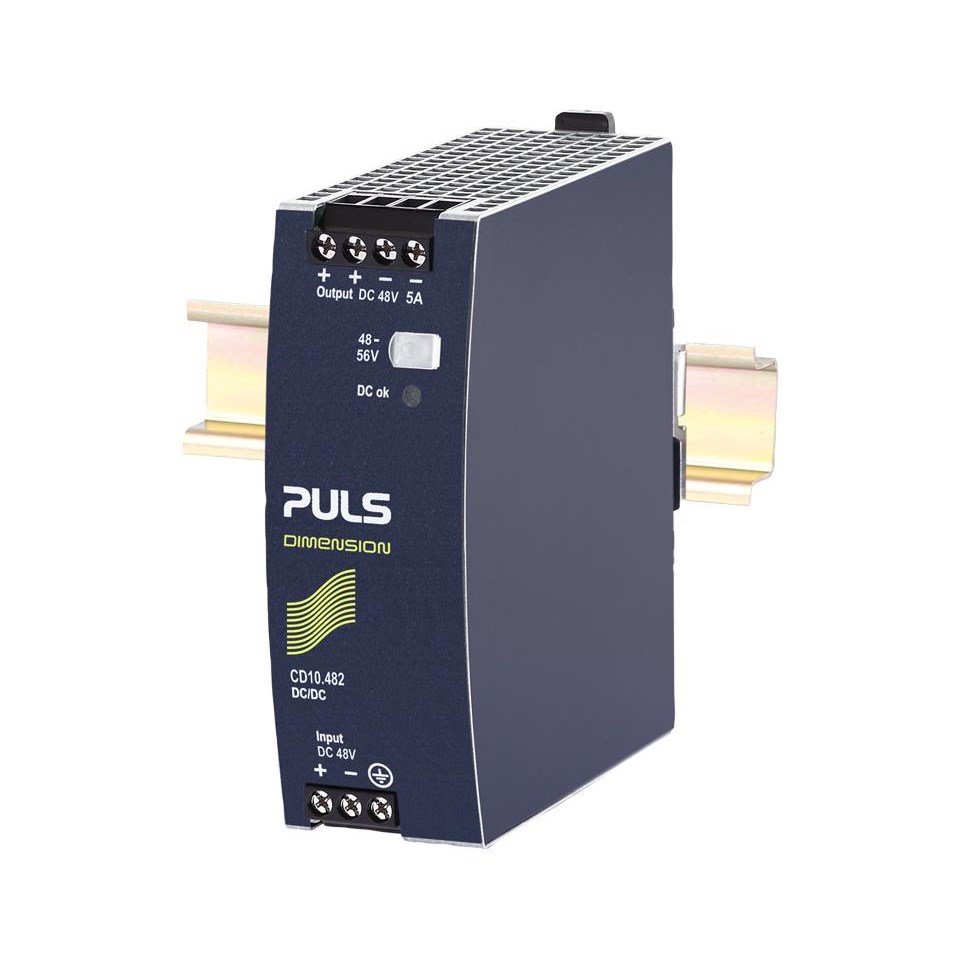

This product features a 48V DC-input and an isolated 48V DC output. With an efficiency of 95.1%, it provides reliable power conversion. The compact design, with a width of only 42mm, allows for easy integration into Various systems. It also offers a 20% output power reserve for added flexibility. Operating at full power between -25°C and +60°C, it is suitable for a wide range of environments. Additionally, it includes a soft-start function to prevent sudden surges in current and reverse input polarity protection for added safety.

Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	6 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS02
Efficiency	95.10%
Input Voltage Range DC (V)	48
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	100
Minimum Input Voltage DC (V)	48
Output Current Range (A)	5 - 4.3
Output Power (W)	240
Output Voltage (V)	48-56
Power Reserve Type	Power Boost
Power Reserves	20%
Special Application	Hazardous location
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85043121
Degree of Protection	IP20
Dimensions (mm)	42W x 124H x 117D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	12.4
Range	DIMENSION
Rated Current (A)	5
Series	C series
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	500
