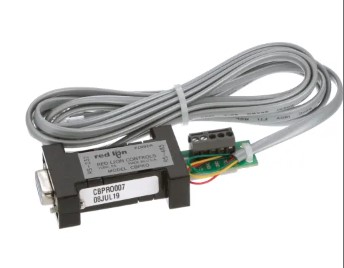

RED LION PROGRAMMING INTERFACE CABLE 2.13m CBPRO007

Optimize your automation systems with the Red Lion PXU Series PID Controller, a versatile solution available in 1/4 DIN, 1/8 DIN, and 1/16 DIN sizes. This controller offers a wide power connection range from AC 100 to 240 VAC or DC 24 VDC and features universal inputs for precise temperature control with RTD indication accuracy of (0.3% of span, +1°C) at 25°C. It supports various thermocouple input types including T, E, J, K, R, S, B, N, L, U, and TXK as well as both 2 or 3 wire RTD inputs with an excitation of 180 µA. For process monitoring and control applications, it accepts inputs from 0-5 or 0-10 VDC to 0-20 or 4-20 mA and even up to a range of 0-50 mV. An optional CT input is also available for single-phase AC current measurement up to 25 mA. Remote input capabilities include ranges from 0-10 VDC to either a standard or enhanced current loop of 0-20 mA or 4-20 mA. Communication is streamlined through an RS-485 serial interface while output options include time proportioning or DC analog signals along with dual relay alarm outputs that come in Form A or C with a contact rating of up to 3 A @250 VAC. The unit's visibility is ensured by an LCD negative image transmissive display with backlighting for clear readouts even in low-light conditions. Designed for IO Systems within the realm of industrial automation by Red Lion a trusted name in the industry this PID controller stands out for its adaptability and precision in managing complex processes.
