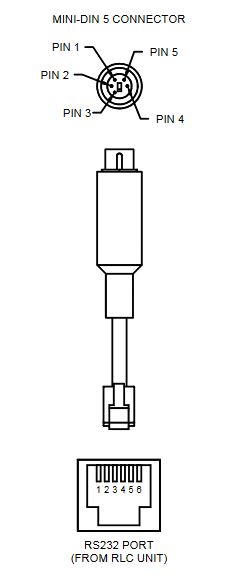

RED LION CABLE- CONNECTS TO MATSUSHITA FP0 CBLMAT02

Optimize your automation systems with the Red Lion PXU series PID Controller, a versatile solution available in 1/4 DIN, 1/8 DIN, and 1/16 DIN sizes. This controller offers flexible power connections with AC 100 to 240 VAC or DC 24 VDC options and boasts universal input capabilities. Experience precise temperature control with RTD indication accuracy of (0.3% of span, +1°C) at 25°C and compatibility with a wide range of thermocouple types including T, E, J, K, R, S, B, N, L, U, and TXK. The unit supports both two or three-wire RTD inputs with an excitation current of 180 µA and can process various signal inputs from 0-5 or 0-10 VDC to 0-20 or 4-20 mA and even up to 0-50 mV. For current transformers (CT), an optional input is available for single-phase AC ranging from 0 to 25 mA. Remote input options include ranges of 0-10 VDC and current signals from 0-20 mA to the industry-standard 4-20 mA. Communication is streamlined through RS-485 serial connectivity. Output features include time proportioning or DC analog outputs along with dual relay alarm outputs that come in Form A or C with a contact rating of up to 3 A @250 VAC. The controller's interface is enhanced by an LCD negative image transmissive display equipped with backlighting for clear visibility. Engineered for reliability in IO systems within the automation category, this Red Lion PID Controller ensures precision and adaptability for complex industrial processes.
