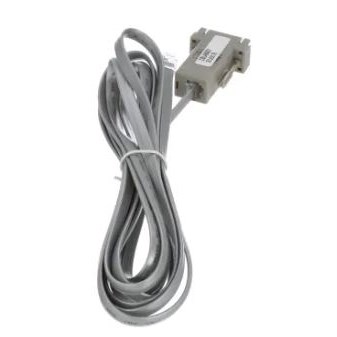

RED LION CABLE - CONNECTS TO MATSUSHITA FP CBLMAT01

Optimize your automation systems with the Red Lion PXU Series PID Controller, available in versatile 1/4 DIN, 1/8 DIN, and 1/16 DIN sizes. This controller offers a robust power connection range from AC 100 to 240 VAC or DC 24 VDC and features universal input capabilities including high-precision temperature control with RTD indication accuracy of (0.3% of span, +1°C) at 25°C. It supports a wide array of thermocouple input types such as T, E, J, K, R, S, B, N, L, U, and TXK along with RTD inputs for both 2 or 3 wire configurations. The unit is designed to handle process inputs ranging from 0-5 or 0-10 VDC to 0-20 or 4-20 mA and even up to 0-50 mV. For current transformers (CT), an optional input accepts from 0 to 25 mA AC on a single phase. Remote input compatibility includes ranges of 0-10 VDC and both standard current loops of 0-20 mA and 4-20 mA. Communication is streamlined through an RS-485 serial interface while output options include time proportioning or DC analog signals. The controller also provides two relay alarm outputs with Form A or C contacts rated at a reliable contact rating of 3 A @250 VAC. Visibility is enhanced by an LCD negative image transmissive display equipped with backlighting for clear readouts even in low-light conditions. As part of Red Lion's IO Systems category within their Automation Systems line-up, this PID controller stands out for its adaptability and precision in industrial environments.
