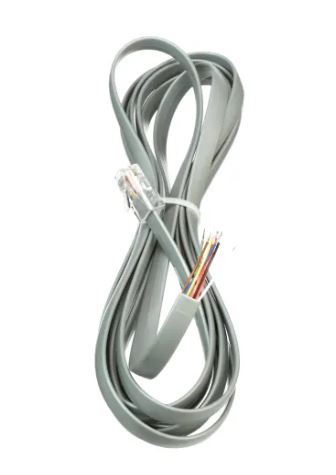

RED LION CABLE - RS422/485 BARE WIRE CBLGEN03

Optimize your automation systems with the Red Lion PXU Series PID Controller, a versatile solution available in 1/4 DIN, 1/8 DIN, and 1/16 DIN sizes. This controller offers flexible power connection options with AC 100 to 240 VAC or DC 24 VDC and features universal inputs for precise temperature control. Experience exceptional RTD indication accuracy of (0.3% of span, +1°C) at 25°C and compatibility with a wide range of thermocouple input types including T, E, J, K, R, S, B, N, L, U, and TXK. The unit supports both two or three-wire RTD inputs with an excitation current of 180 µA and can process various input signals such as 0-5 or 0-10 VDC, 0-20 or 4-20 mA, and even up to 0-50 mV. An optional CT input is also available for single-phase AC current measurement up to 25 mA. Remote input capabilities include ranges from 0-10 VDC to the industry-standard 4-20 mA signal. Communication is streamlined through an RS-485 serial interface while output options include time proportioning or DC analog outputs along with dual relay alarm outputs featuring Form A or C contacts rated at 3 A @250 VAC. The controller's LCD is designed for clarity with negative image transmissive properties enhanced by backlighting for easy monitoring. Engineered for reliability in IO systems within the automation category, the Red Lion PXU Series PID Controller delivers precision control tailored to your industrial needs.
