Earth Fault Protection	Other
L-L Capacitance (nF)	≤ 25
L-PE Capacitance (pF)	≤ 20
Limiting Frequency (Hz)	100
Maximum Continuous Voltage AC (V)	4.2
Maximum Continuous Voltage DC (V)	6
Mounting Method	On basic element
Nominal Voltage (V)	6
Nominal Voltage DC (V)	6
SPD Type	2
Voltage Protection Level - Up (V)	Line-Line for In C2: ≤ 35 Line-PG for In C2: ≤ 1800 Line-Line at 1 kV/µs C3 ≤ 20 Line-PG at 1 kV/µs C3 ≤ 1400
Voltage Protection Level Earth	1400
Brand	DEHN
Colour	Blue
Degree of Protection	IP20
Dimensions (mm)	12W x 45H x 51D
Enclosure Material	Polyamide PA 6.6
Lightning Impulse Current (10/350 µs) - Iimp (kA)	1
Maximum Continuous Operating Voltage MCOV AC (V)	4.2
Maximum Continuous Operating Voltage MCOV DC (V)	6
Mounting Type	Plugged Into Base Part
Nominal Discharge Current (8/20µs) - In (kA)	10
Nominal Load Current AC - I? (A)	4.8
Operational Temperature Range (°C)	-40 to 80
Reference No.	920538
Standards and Approvals	IEC 61643-21 / EN 61643-21
Suitable For	Pluggable DIN Rail Mounted
Voltage Protection Level - Up (kV)	20
Weight (kg)	0.02

Lightning & Surge Protection

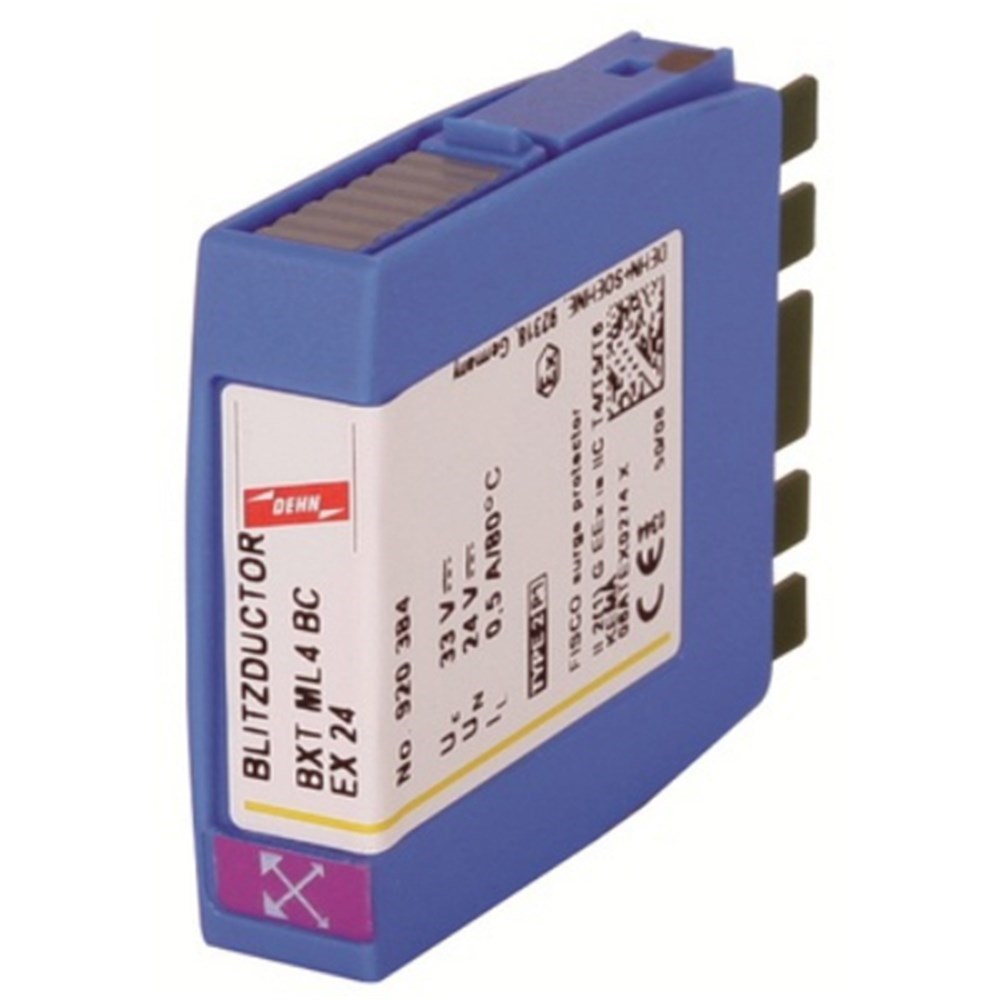

DEHN BLITZDUCTOR XT EX (I) SURGE AR. MODULE BXTML2BDHFEX6
