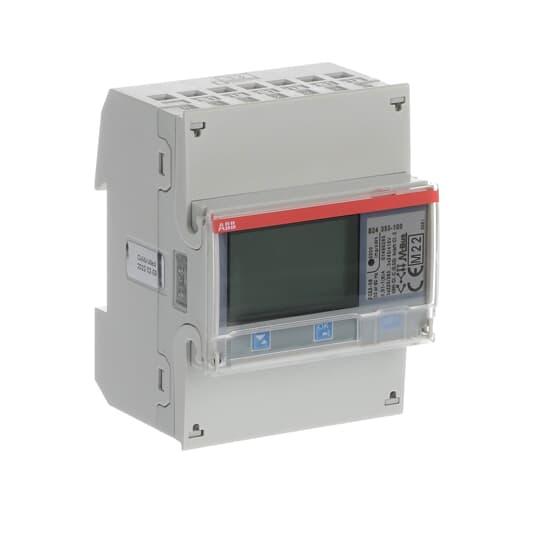

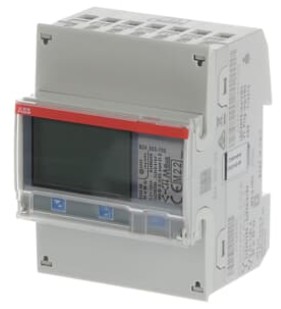

ABB B24-353-100 kWh METER 6A, 3 PHASE CT CONNECT WITH 2 OUTPUT, 2 INPUT & M-BUS TP, SILVER FUNCTIONALITY

The B24-353 energy meter is a 6A CT connect device designed for three-phase systems operating at 230VAC. It features 2 output and 2 input connections, as well as M-Bus TP communication capability. This energy meter offers high accuracy, with an active energy class of 0.5% and a reactive energy class of 2%. It can measure a range of voltages, including N-L voltage between 230-240V and L-L voltage between 380-415V. With a protection degree of IP20, this energy meter provides reliable performance in various environments. It also includes a backlit pixel-oriented LCD display for easy reading. In terms of functionality, the B24-353 energy meter belongs to the Silver sub-group. It supports measurements of active, reactive, and apparent energy, as well as import/export of energy. The device also has resettable energy registers and can operate in either Class 0.5 or Class 1 mode. Additionally, it supports tariffs, fixed I/O connections, active energy measurement, and pulse output/alarm features. The B24-353 energy meter is designed to be mounted on a DIN rail and occupies four modules in width.
