Product Code: B24-112-100

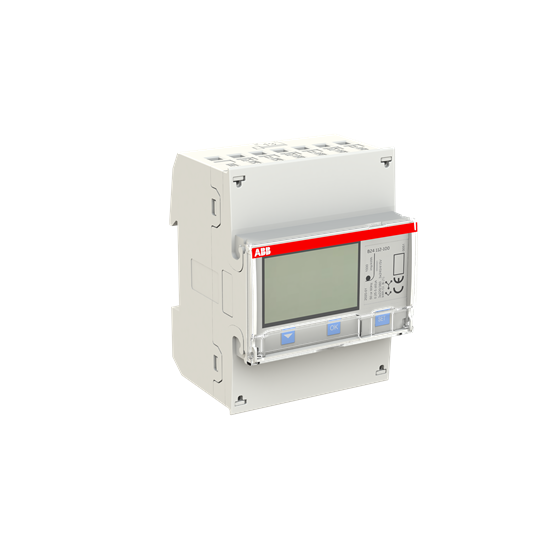

The B24-112 energy meter is a 6A CT connect device designed for three-phase power systems. It operates at 230VAC and features pulse output and Modbus RTU communication. The meter has an accuracy of active energy class 1%, ensuring precise measurements. It can measure voltage in the range of N-L 230-240V and L-L 380-415V. With a protection degree of IP20, it offers reliable performance in various environments. The backlit pixel-oriented LCD display provides clear visibility of readings. This energy meter belongs to the sub-group Steel functionality, offering active energy measurement, class 1 accuracy, and pulse output/alarm capabilities. It is four modules wide and can be easily mounted on a DIN rail.

Brand	ABB
Accuracy Class	Active Energy Class B MID
I/O Option	1 digital output
Meter Type	Transformer connected
Net Weight (g)	250
No. of Digital Outputs	1
Number of Counter Positions	7
Pulse Output Rate	1-999999
Sub-Function	Steel
Accuracy	±1%
Communication	Modbus RTU
Communication Interface	Modbus RS485
Connection Type	Transformer connected
Current Rating (A)	1
Degree of Protection	IP20
Dimensions (mm)	70 X 26.5 X 65
Display Screen Type	Digital
Enclosure Material	Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover.
Function	Electricity meter
Maximum Current (A)	6
Mounting Type	DIN-Rail
No. of Phases	Three-phase
No. of Poles	4P
Operational Temperature Range (°C)	-40 to +70
Power Consumption (W)	0.721
Rated Current (A)	1 Maximum 6
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	3x220-240
Standards and Approvals	IEC 62053-21
Width in Number of Modular Spacings	4

Power & Multifunction Meters

ABB B24 ENERGY METER 'STEEL', MODBUS RS485, THREE-PHASE, 1A B24-112-100

Product Code: B24-112-100
