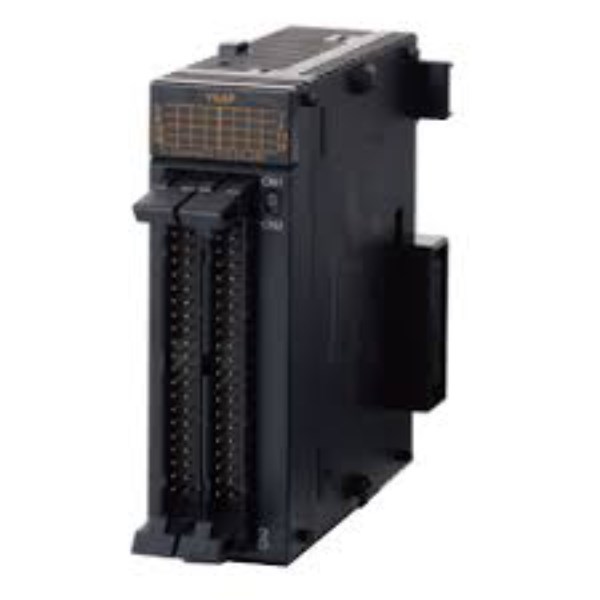

PANASONIC DIGITAL OUTPUT UNIT 64 POINTS AFP7Y64P

Product Code: AFP7Y64P

The FPZ series is a digital output unit with 64 points of transistor output. The outputs are sourced as PNP. The load current for each output is 0.3 A or 0.1 A, and there are 32 points that can be used in common. For mixed loads, the maximum load current is 3.2 A. The unit can be connected using a MIL connector.

Technical Specifications

Current Consumption (mA) 75
No. of Points 64
Brand PANASONIC
Connection Type MIL Connector
Dimensions (mm) 90H x 28W x 103D
Insulation Resistance (MO) 100 at 500VDC
Operational Temperature Range (°C) 0 to +55
Rated Operational Voltage DC (V) 5 - 24
Series FP7
