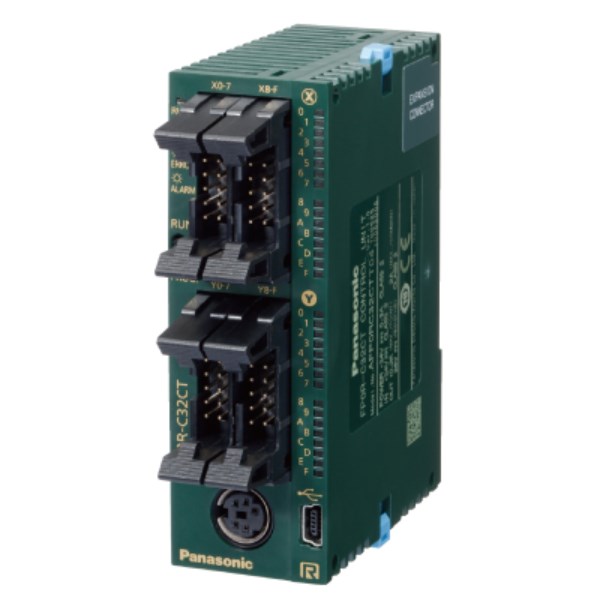

PANASONIC CONTROL UNIT WITH RS232C PORT AFP0RT32CT

Product Code: AFP0RT32CT

The Control Unit is equipped with an RS232C port and a real-time clock function. It has a built-in memory capacity of EEPROM (32 k steps). With 16 inputs and 16 transistor outputs, it provides efficient control capabilities. The power supply voltage is 24 VDC, and the output is a transistor NPN with a current of 0.2 A. The unit features a MIL connector for easy connectivity.

Technical Specifications

No. of Inputs 16
No. of Outputs 16
Brand PANASONIC
Communication RS-232C
Dimensions (mm) 94.5H x 30W x 79D
Insulation Resistance (MO) 100 at 500VDC
Mounting Type DIN Rail
Operational Temperature Range (°C) 0 to +55
Rated Voltage DC (V) 24
Series FP0R
