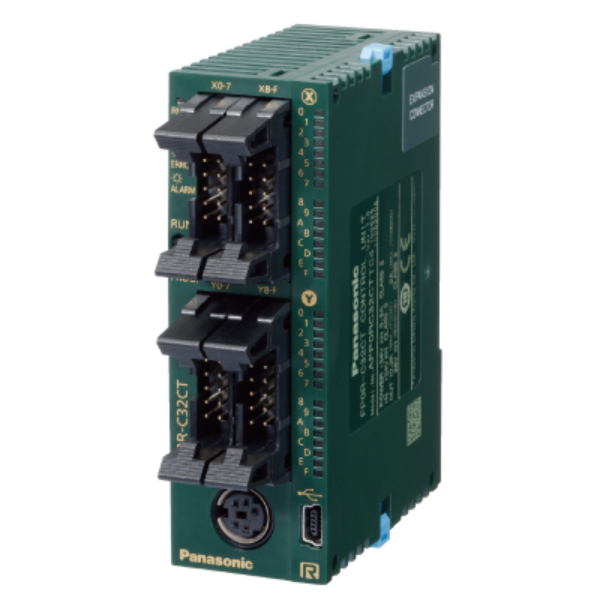

PANASONIC PROGRAMMABLE CONTROL UNIT, 24V DC AFP0RC32CT

Product Code: AFP0RC32CT

The Programmable Control Unit is equipped with an RS232C port and operates on a 24 VDC power supply voltage. It features a built-in EEPROM memory with a program capacity of 32 k steps. The unit has 16 inputs and 16 outputs, all of which are transistor (NPN) type. The output current is rated at 0.2 A. For connectivity, the unit utilizes a MIL connector.

Technical Specifications

No. of Inputs 16
No. of Outputs 16
No. of Points 32
Brand PANASONIC
Dimensions (mm) 94.5H x 30W x 79D
Insulation Resistance (MO) 100 at 500VDC
Operational Temperature Range (°C) 0 to +55
Rated Voltage DC (V) 24
Series FP0R
