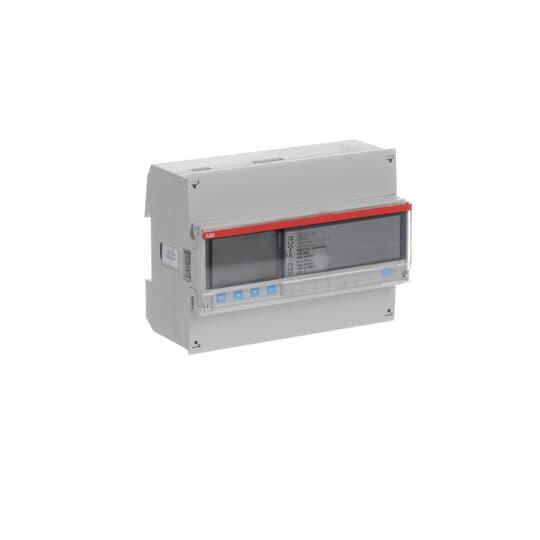

ABB A44-352-100 kWh METER 6A, 3 PHASE CT CONNECT WITH 2 OUTPUT, 2 INPUT & MODBUS RTU, SILVER FUNCTIONALITY

The A44-352 energy meter is a three-phase device that operates at 230VAC and has a current rating of 6A. It features two output and two input connections, as well as Modbus RTU communication. This energy meter offers high accuracy, with an active energy class of 0.5% and a reactive energy class of 2%. It can measure voltage in the range of L-L 100-500V and N-L 57.7-288V. With a protection degree of IP20, this energy meter is designed to withstand dust and solid objects. It also features a backlit pixel-oriented LCD display for easy reading. In terms of functionality, it belongs to the Silver sub-group. This means it can measure active, reactive, and apparent energy, as well as import/export of energy. It also has resettable energy registers and supports either Class 0.5 or Class 1 accuracy. Additionally, it supports tariffs, fixed I/O connections, active energy measurement, and pulse output/alarm. The A44-352 energy meter is seven modules wide and can be mounted on a DIN rail for easy installation.
