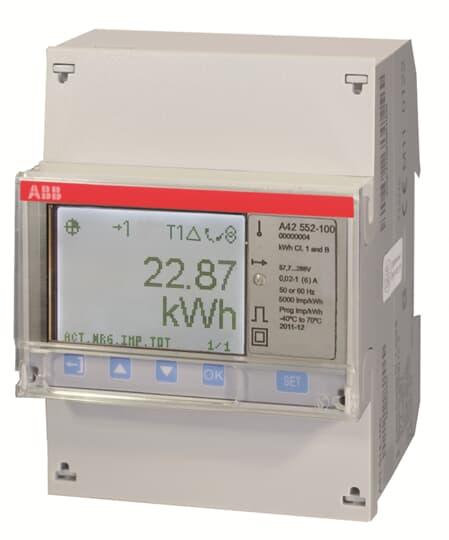

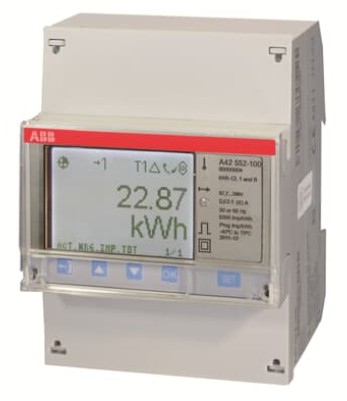

ABB A42-552-100 kWh METER 6A, 1 PHASE CT CONNECT WITH CONFIGURABLE I/O & MODBUS RTU, PLATINUM FUNCTIONALITY

The A42-552 energy meter is a single-phase meter that operates at 230VAC and has a current rating of 6A. It features configurable I/O and Modbus RTU communication for easy integration into existing systems. With an accuracy of active energy class 0.5% and reactive energy class 2%, this meter provides precise measurements. It has a measurement range of 57.7-288V between the neutral and line connections. The meter is designed with a protection degree of IP20, ensuring its durability in various environments. It also boasts a backlit pixel-oriented LCD display for clear visibility. In terms of functionality, the A42-552 offers Platinum features such as active, reactive, and apparent energy measurement, import/export of energy data, resettable energy registers, harmonics analysis, and configurable I/O (except for the 690V meter which has fixed I/O). Additionally, it provides advanced clock functions like load profiles and basic clock functions including tariff control, previous values tracking, maximum/minimum demand calculation, and event logging. The meter can be configured as either Class 0.5 or Class 1. Other notable features include support for tariffs, fixed I/O options, and pulse output/alarm capabilities. The A42-552 energy meter is four modules wide and can be easily mounted on a DIN rail for convenient installation.
