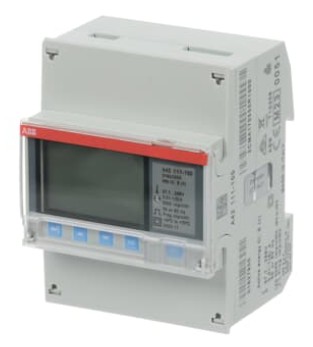

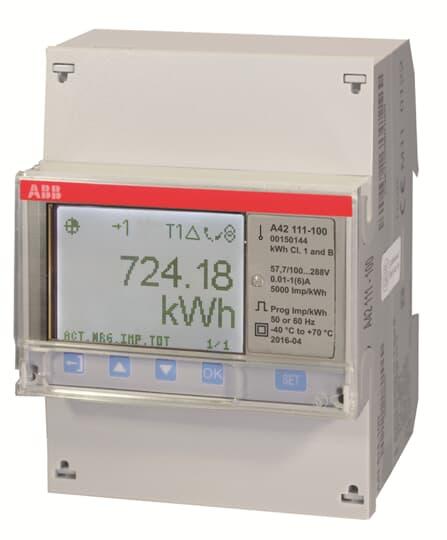

ABB A42 ENERGY METER 'STEEL', IR PORT, SINGLE-PHASE, 6A A42-111-100

Product Code: A42-111-100

The A42-111 energy meter is a single-phase meter designed for 230VAC with a CT connection. It has a pulse output/IR port for easy data transfer. The meter has an accuracy class of 1 and can measure a range of 57.7-288V between the N and L terminals. It has a protection degree of IP20, ensuring its durability. The backlit pixel-oriented LCD display provides clear visibility in any lighting condition. The meter belongs to the sub-group Steel functionality and offers features such as active energy measurement, Class 1 accuracy, and pulse output/alarm capabilities. It is four modules wide and can be easily mounted on a DIN rail.

Technical Specifications

Brand ABB
Accuracy Class Active Energy Class B MID
Meter Type Transformer connected
Net Weight (g) 197
No. of Digital Outputs 1
Number of Counter Positions 7
Output Type Pulse
Pulse Output Rate 1-999999
Sub-Function Steel
Accuracy ±1%
Communication Interface IR port
Connection Type Transformer connected
Current Rating (A) 6
Degree of Protection IP20
Dimensions (mm) 70 X 26.5 X 65
Display Screen Type Digital
Enclosure Material Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover.
Function Electricity meter
Mounting Type DIN-Rail
No. of Phases Single-phase
No. of Poles 1P
Power Consumption (W) 0.801
Rated Current (A) 1 Maximum 6
Rated Frequency (Hz) 50 / 60
Rated Voltage (V) 57.7-288
Rated Voltage AC (V) 230
Width in Number of Modular Spacings 4
