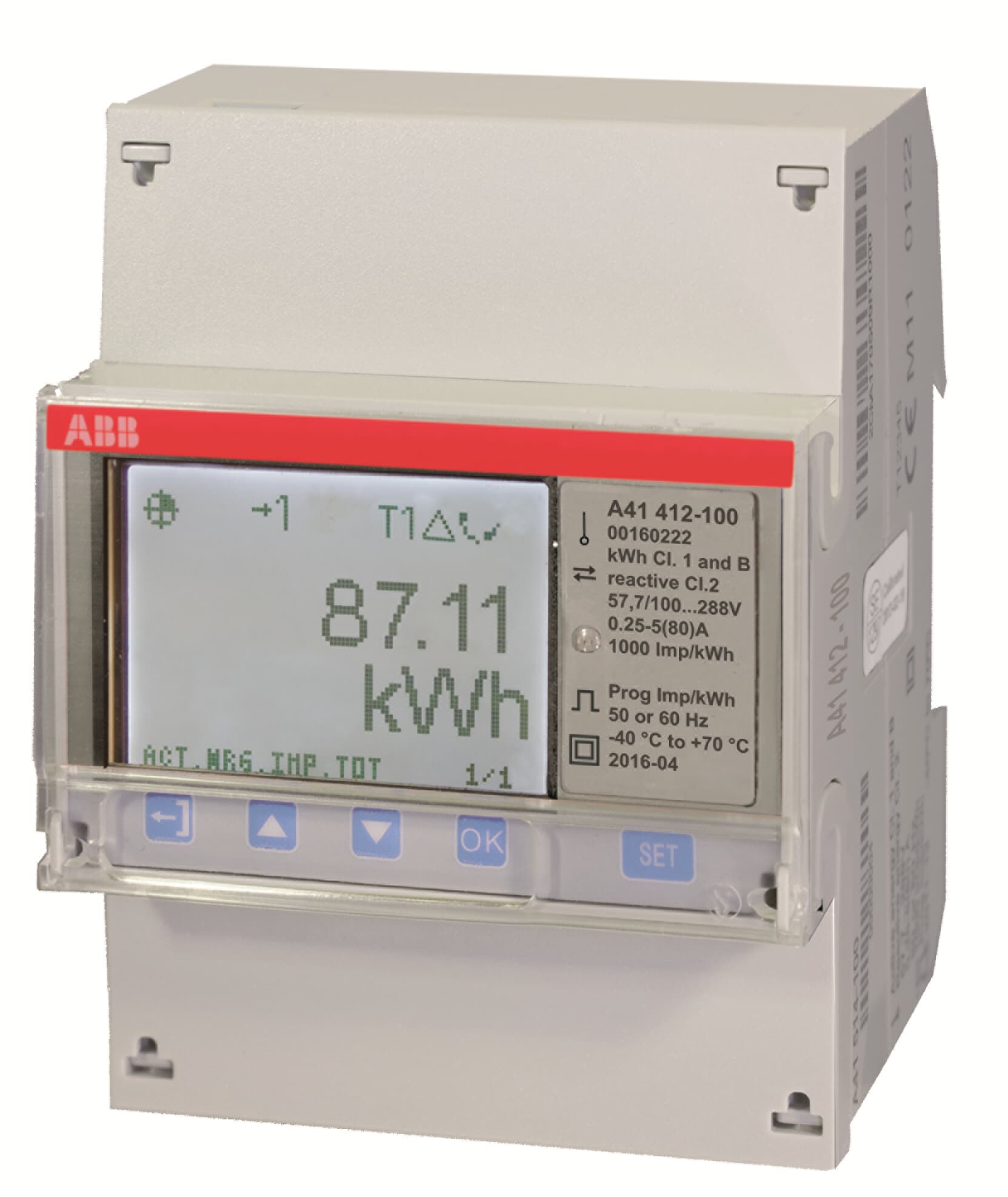

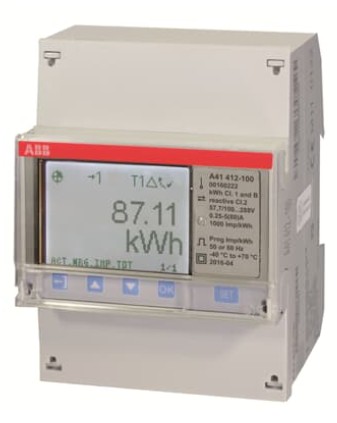

ABB A41-412-100 kWh METER 80A, 1 PHASE DIRECT CONNECT WITH PULSE OUTPUT/MODBUS RTU

The A41-412 energy meter is a direct connect meter designed for single-phase electrical systems. It has a maximum current rating of 80A and operates at 230VAC. This energy meter features pulse output and Modbus RTU communication, allowing for easy integration into existing systems. It has an accuracy class of 1, ensuring precise measurement of energy consumption. The range of measurement for this meter is between 57.7V and 288V when measuring the voltage between the neutral (N) and line (L). With a protection degree of IP20, this energy meter offers reliable protection against dust and solid objects. The backlit pixel-oriented LCD display provides clear visibility in various lighting conditions. The A41-412 energy meter belongs to the Gold functionality sub-group, offering a wide range of features. These include tracking active, reactive, and apparent energy consumption, as well as the ability to import/export energy data. The meter also includes resettable energy registers and basic clock functions such as tariff control, previous values, max/min demand, and event logging. Depending on requirements, this meter can be configured with either Class 0.5 or Class 1 accuracy. It supports multiple tariffs and offers fixed I/O connections for seamless integration with other devices or systems. Measuring four modules wide, this energy meter is designed for DIN rail mounting, making installation quick and convenient.
