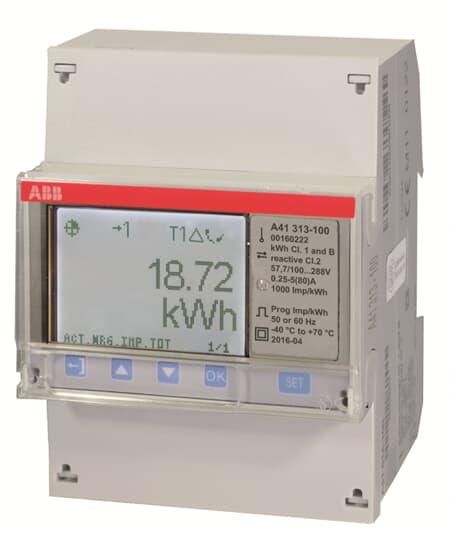

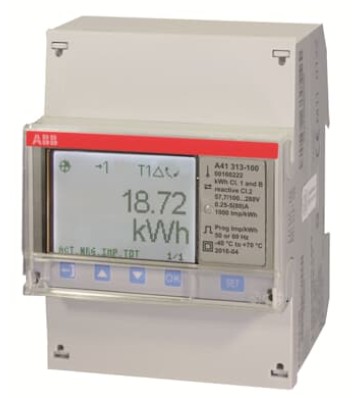

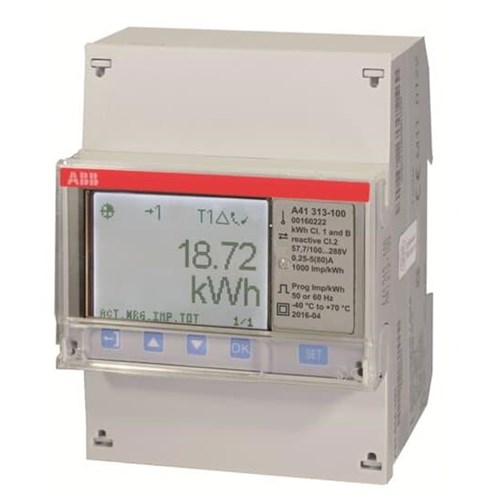

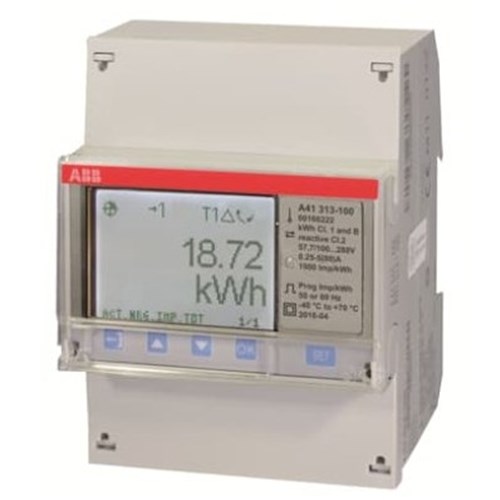

ABB A41-313-100 kWh METER 80A, 1 PHASE DIRECT CONNECT WITH 2 OUTPUT, 2 INPUT & M-BUS TP, SILVER FUNCTIONALITY

The A41-313 energy meter is a direct connect meter designed for single-phase systems with a maximum current of 80A and voltage rating of 230VAC. It features 2 output and 2 input ports, as well as M-Bus TP communication capability. This energy meter offers high accuracy measurements, with active energy accuracy rated at class 1% and reactive energy accuracy at class 2%. It has a measurement range of 57.7V to 288V between the neutral (N) and line (L) connections. With an IP20 protection degree, this energy meter provides reliable protection against dust and solid objects. It also features a backlit pixel-oriented LCD display for easy reading in various lighting conditions. The A41-313 energy meter belongs to the Silver functionality sub-group, offering a range of features including measurement of active, reactive, and apparent energy. It supports import/export of energy, resettable energy registers, and can be configured as either Class 0.5 or Class 1. Additionally, it supports tariffs, fixed I/O connections, activeenergy monitoring, and has pulse output/alarm capabilities. This energy meter is designed to be mounted on a DIN rail and occupies four modules in width.
