Product Code: 943 940-999-006

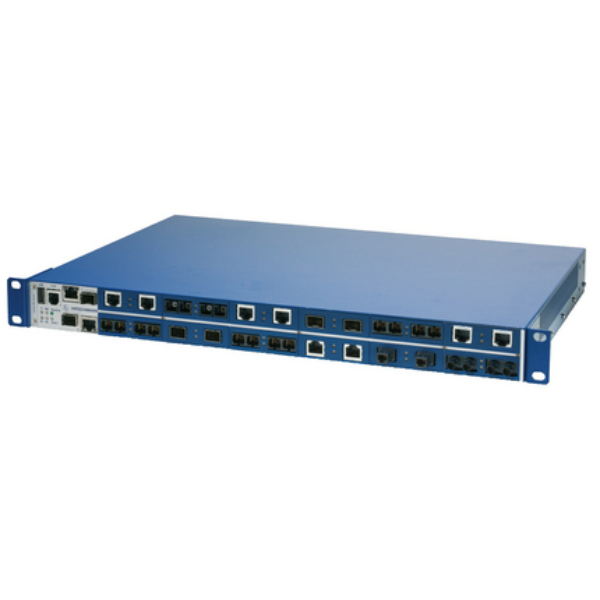

Explore the Hirschmann MAR1030, a robust managed rackmount switch designed for challenging environments. This Layer 2 Professional switch features 12 RJ45 twisted pair ports supporting 10/100 Mbit/s and an additional 12 SFP slots for 100 Mbit/s fiber connections. Engineered to withstand extreme temperatures ranging from -40°C to +85°C, it ensures reliability in diverse conditions. Dual power supply options (110/250 V DC and 110/230 V AC) provide versatile connectivity. The MAR1030 meets rigorous industry standards with approvals including cUL508, cUL1604 Class 1 Div2, Germanischer Lloyd, IEC 61850-3, IEEE 1613, and EN 50121. Ideal for engineers seeking network solutions that offer durability and performance, the Hirschmann MAR1030 is a top-tier choice in the switches category.

Maximum Temperature (°C)	85
Minimum Temperature (°C)	-40
No. of 100Mb Ports	24
No. of Ethernet Ports	12
No. of Fiber Ports	12
Rated Maximum Operational Voltage AC (V)	230
Rated Maximum Operational Voltage DC (V)	250
Rated Minimum Operational Voltage AC (V)	110
Rated Minimum Operational Voltage DC (V)	110
Brand	HIRSCHMANN
Degree of Protection	IP30
Mounting Type	19" Control Cabinet
No. of Ports	12 x Twisted Pair 10/100 Mbit/s RJ45 FE, 12 x 100 SFP Mbit/s FE
Operational Temperature Range (°C)	-40 to +85
Rated Operational Voltage AC (V)	110 - 230
Rated Operational Voltage DC (V)	110 - 250
Series	MAR1030
Standards and Approvals	IEC 61850-3
Switch Type	Fast Ethernet Uplink
