Product Code: 943 892-001

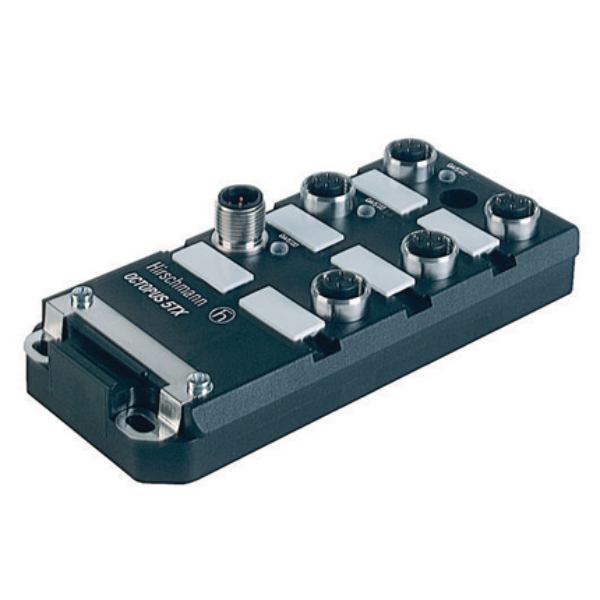

Explore the robust Hirschmann OCTOPUS Series Ethernet Switch, designed for challenging industrial environments. This unmanaged switch features five 10/100 BASE-TX TP-cable M12 "D" female ports, ensuring reliable connectivity. Operating on a 9.6 - 32 VDC power supply and withstanding extreme temperatures from -40 to +70 degrees Celsius, it meets the IP67 standard for water and dust resistance. Ideal for network solutions that demand durability and consistent performance without complex management.

Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
No. of 100Mb Ports	5
No. of Ethernet Ports	5
Nominal Power (W)	2.4
Rated Maximum Operational Voltage DC (V)	32
Rated Minimum Operational Voltage DC (V)	9
Brand	HIRSCHMANN
Degree of Protection	IP67
Dimensions (mm)	126H x 60W x 31D
Mounting Type	Wall
No. of Ports	5 x 10/100BASE-TX
Operational Temperature Range (°C)	-40 to +70
Power Consumption (W)	2.4
Rated Operational Voltage DC (V)	9.6 - 32
Series	OCTOPUS
Standards and Approvals	cUL508, E1
Switch Type	Switch - Unmanaged

Ethernet Switches

HIRSCHMANN UNMANAGED 5-PORT IP67 ETHERNET SWITCH 943 892-001
