Electromagnetic Capability	10 V/m (80-1000 MHz)
Electrostatic Discharge (kV)	6 kV Contact Discharge, 8 kV Air Discharge
Fiber Cable Length (km)	71 - 128
Fiber Type	Single mode fiber (9/125 µm - long haul transceiver)
Maximum Temperature (°C)	60
Mean Time Between Failure (MTBF)	487 Years
Minimum Temperature (°C)	0
No. of Fiber Ports	1
Relative Humidity	5-95 %
Resistance to Vibrations	1 mm, 2 Hz-13.2 Hz, 90 min. 0.7 g, 13.2 Hz-100 Hz, 90 min. 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min. 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
Software Diagnostics	Optical input and output power, transceiver temperature
Transition Type	2 kV power line, 1 kV data line
Brand	HIRSCHMANN
Degree of Protection	IP20
Dimensions (mm)	13.4W x 8.5H x 56.5D
Mounting Type	SFP Slot
No. of Ports	1 x 1000 Mbit/s with LC connector
Operational Temperature Range (°C)	0 - 60
Power Consumption (W)	1
Series	M-SFP
Storage Temperature Range (°C)	-40 - 85
Surge Voltage (kV)	Power Line: 2 kV (Line/Earth), 1 kV (Line/Line), 1 kV Data Line
Weight (g)	30
Weight (kg)	0.03

Cables & Accessories

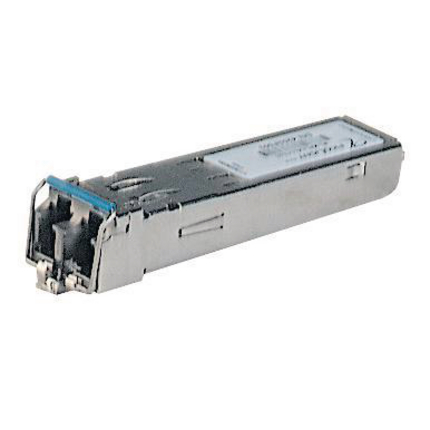

HIRSCHMANN SFP FIBER OPTIC GIGABIT ETHERNET TRANSCEIVER LH 943049001
