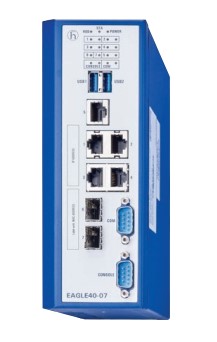

HIRSCHMANN FIREWALL & SECURITY ROUTER 942 300-999-002

Product Code: 942 300-999-002

The Security Router and Firewall is equipped with 7 gigabit ethernet ports, each capable of supporting speeds up to 1000 Mbit/s. It has 2 SFP type uplink ports and 5 twisted pair RJ45 ports. The device can operate in a wide temperature range from -40°C to +70°C. It requires a voltage range of 2 x 24-48 V DC. Additionally, it features an Intrusion Detection System (IDS) sensor for enhanced security. The device has a degree of protection rating of IP40.

Technical Specifications

Brand HIRSCHMANN
Communication 5 x GbE RJ45 ports + 2 x GbE SFP ports
Degree of Protection IP40
Dimensions (mm) 177W x 125.8H x 70D
Enclosure Material Rugged high-strength sheet metal
Mounting Type DIN Rail
Operational Temperature Range (°C) -40 to 70
Rated Operational Voltage DC (V) 2 x 24 - 48
Reference No. EAGLE40-072O6TCCA9HSRAUNXX.X.X
Series EAGLE40
Standards and Approvals CE, FCC, (EN 62368)
Weight (kg) 1.56
