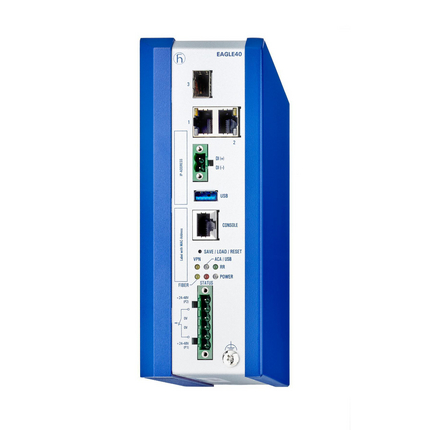

HIRSCHMANN NEXT-GENERATION FIREWALL WITH STATEFUL PACKET INSPECTION 2X GE TX, 1X GE SFP, 24-48V DC, -40-70°C, UL APPROVAL 942300004

Product Code: 942 300-004

Hirschmann's product offers robust connectivity solutions, featuring 2x GE TX and 1x GE SFP ports for versatile network configurations. Designed to operate in extreme temperatures ranging from -40 to 70°C and powered by a 24-48 V DC source, it meets UL approval standards for safety and reliability.

Technical Specifications

Operating Voltage 2 x 24/36/48V DC
Port Quantity and Type 2 x TX + 1 x SFP
Power Output in BTU (IT)/h 51
Relative Humidity 10-95 %
Brand HIRSCHMANN
Approvals CE, FCC, EN 61131
Degree of Protection IP20
Dimensions (mm) 70W x 187.2H x 135.8D
Housing Material Rugged high-strength sheet
Mounting Type Din Rail Mount
Operational Temperature Range (°C) -40 to +70
Power Consumption (W) Max. 15
Storage Temperature Range (°C) -40 to +85
Weight (kg) 1.96
