Product Code: 942 287-010

Hirschmann's networking solution offers a robust configuration with a variety of port speeds to meet diverse network demands. It features 6 x 1/2.5/10 Gbit/s SFP ports, 8 x 1/2.5 Gbit/s SFP ports, and 16 x Gbit/s TX ports, ensuring high-speed data transmission capabilities. The device is powered by a 110-240 VAC power supply and operates efficiently in temperatures ranging from -10°C to +60°C. Equipped with HiOS L2A software, it delivers advanced layer 2 management features for optimized network performance.

Operating Voltage	1 x 110 - 240V AC
Port Quantity and Type	6 x GE/2.5GE/10GE SFP(+) 8 x GE/2.5GE SFP, 16 x FE/GE TX
Power Output in BTU (IT)/h	Max. 120
Relative Humidity	5- 90%
Brand	HIRSCHMANN
Approvals	CE, FCC, EN61131, EN62368, Cul62368
Degree of Protection	IP20
Dimensions (mm)	444W x 44H x 355D
Mounting Type	Rack Mount
Operational Temperature Range (°C)	-10 to +60
Power Consumption (W)	35 (Basic unit with one power supply)
Storage Temperature Range (°C)	-20 to +70
Weight (kg)	5 (estimated)

Ethernet Switches

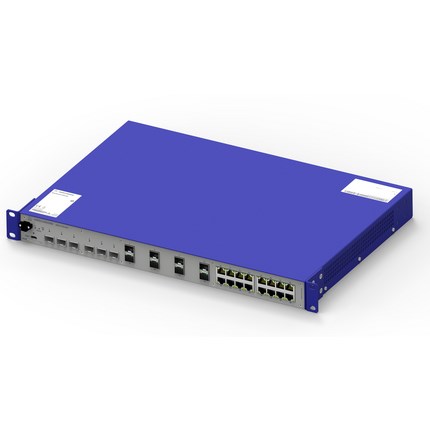

HIRSCHMANN 6 X 1/2.5/10 GBIT/S SFP + 8 X 1/2.5 GBIT/S SFP + 16 X GBIT/S TX, 110-240V AC POWER SUPPLY, HIOS L2A 942287010

Product Code: 942 287-010

Technical Specifications
