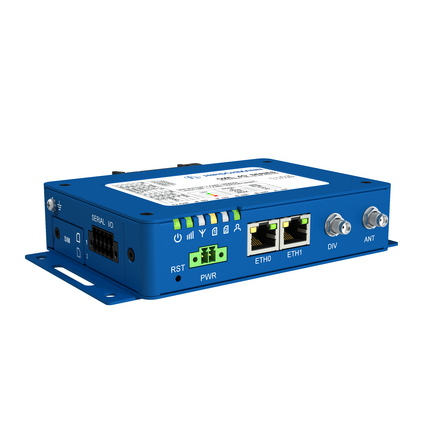

Hirschmann 942 285-101 LTE Module 2 x Ethernet 2 x Antenna 1 x GPS 2 x SIM 1 x Power 2 x I/O 2 x Serial 2 x WLAN

Product Code: 942 285-101

  • Supports 9-36 VDC for flexible power options
  • Mounts on DIN rail or wall for easy installation
  • Operates in harsh temps from -40 to 65°C
  • IP30 protection against dust and solid objects
  • Offers multiple connectivity with Ethernet, SIM, WLAN
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type LTE Module
Brand HIRSCHMANN
Degree of Protection IP30
Depth 105 mm
Height 32 mm
Housing Material Metal
Humidity 0-95%
Mounting Type DIN Rail, Wall
Number of Ports 2 x Ethernet, 2 x Antenna, 1 x GPS, 2 x SIM, 1 x Power, 2 x I/O, 2 x Serial, 2 x WLAN
Operational Temperature -40 to 65 deg C
Rated Voltage 9-36 VDC
Relative Humidity 0-95 %
Software Configuration Simple to edit text file configuration, HTTP, HTTPs, SMS, SSH, Telnet, 4 Configuration Profiles, automatic via web/ftp, SNMPv1/2c/3
Software Diagnostics One click support report package, System log, Linux kernel log, reboot log, signal strength history (60 days), SSH linux shell, Signal strength LED indicators
Software Management HTML5, SSH, SNMPv1/2c/3, Automatic configuration and firmware fetch from a web- or ftpserver, backup and restore with drag & drop
Software Security HTTPs, SSH, Authentication with RADIUS or TACACS+, activate cellular interface with SMS, Ethernet 802.1X (EAP-PEAP/MsCHAPv2 or EAP-TLS)
Storage Temperature -40 to 85 deg C
Width 145 mm

Description

<p>When it comes to industrial networking, reliability and flexibility are key. This robust Industrial Router is designed to meet the demanding needs of various commercial and industrial applications. With a rated voltage range of 9-36 VDC, this router offers versatile power options suitable for diverse operational environments.</p><p>Installation is straightforward with dual mounting options; whether you prefer DIN rail or wall mounting, this device adapts effortlessly to your setup. Its compact dimensions—145 mm in width, 32 mm in height, and 105 mm in depth—enable easy integration into existing systems without occupying excessive space.</p><p>The router&amp;#39;s durability is underscored by its IP30 degree of protection, ensuring it withstands dust ingress while operating smoothly within a temperature range of -40 to 65 degrees Celsius. For storage purposes, it can handle temperatures as low as -40 up to 85 degrees Celsius. The humidity tolerance from 0% to 95% further enhances its ability to function efficiently across varied climates.</p><p>Connectivity is at the heart of this router&amp;#39;s design. It features two Ethernet ports that facilitate seamless data transfer across networks. The inclusion of two antenna ports and one GPS port ensures enhanced signal reception and precise location tracking capabilities—a crucial feature for mobile or remote installations.</p><p>For mobile connectivity redundancy and enhanced network reliability, the router supports dual SIM slots. Additionally, it includes one power port for stable energy input and two I/O ports that enable integration with external devices or sensors.</p><p>Serial communication remains vital in many industrial settings; hence this router provides two serial ports for legacy system compatibility or specialized equipment connections. Wireless connectivity isn&amp;#39;t overlooked either; with two WLAN ports available, you can maintain robust wireless communications within your network infrastructure.</p><p>This Industrial Router stands out as a reliable choice for those seeking a durable yet flexible solution tailored for challenging environments where consistent performance matters most.</p>

Documents

  • Supplier Datasheet

  • IPD Product Catalogue

    IPD Product Catalogue V17
