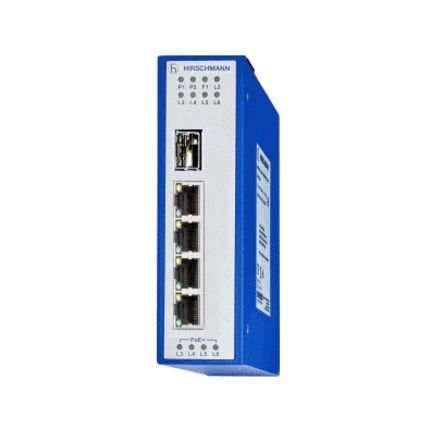

HIRSCHMANN SPIDER III STANDARD LINE, 5X 10/100/1000 BASE TX, RJ45 & 1X 100/1000BASE FX SFP, 12-24V DC; POE+ 942274001

Product Code: 942 274-001

The Hirschmann SPIDER III Standard Line offers a robust networking solution with 5x 10/100/1000BASE TX RJ45 ports and 1x 100/1000BASE FX SFP slot, supporting a wide range of data speeds for versatile connectivity. This unit is designed for efficient power management, operating on 12-24 VDC and featuring PoE+ capabilities to power devices directly through the network cables, simplifying installation and reducing cable clutter.

Technical Specifications

Current Consumption (mA) 0.27 at 24VDC
Maximum Temperature (°C) 70
Minimum Temperature (°C) -40
No. of 1GB Ports 6
No. of Ethernet Ports 5
No. of Fiber Ports 1
Nominal Power (W) 139.7
Port Quantity and Type 1 x GE FX, 4 x PoE+
Rated Maximum Operational Voltage DC (V) 57
Rated Minimum Operational Voltage DC (V) 12
Brand HIRSCHMANN
Degree of Protection IP30
Dimensions (mm) 130H x 35W x 121D
Mounting Type DIN Rail / Wall
Operational Temperature Range (°C) -40 to +70
Power Consumption (W) 140W with 120W PoE Output
Rated Operational Voltage DC (V) 12 - 57
Series SPIDER-SL
Standards and Approvals cUL 61010-1/61010-2-201
Switch Type Switch - Unmanaged
