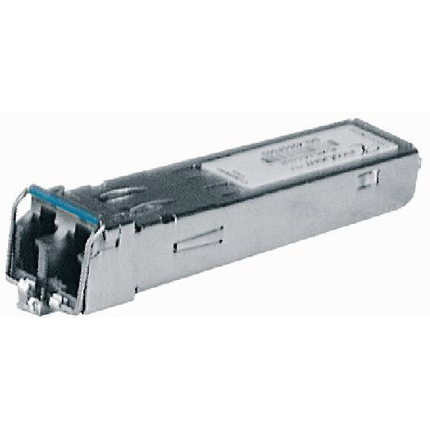

Hirschmann 942 194-001 SFP Fiber Optic Fast Ethernet Ethernet Transceiver

Product Code: 942 194-001

  • Supports multimode fibre, 50/125 mm & 62.5/12.5 mm
  • Data rate up to 100 Mbps over distances of 4-5 km
  • Compact design with a width of just 13.4 mm
  • Operates within temperatures from 0 to 60°C
  • Complies with IEC standards for durability
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type SFP Fiber Optic Fast Ethernet Ethernet Transceiver
Brand HIRSCHMANN
Series SFP-FAST
Connection Type LC
Data Rate 100 Mbps
Degree of Protection IP20
Distance 4 km, 5 km
Fibre Type 50/125 µm, 62.5/12.5 µm Multimode
Humidity 5-95%
Mounting Type SFP Slot
Number of Fibre Ports 1
Operational Temperature 0 to 60 deg C
Rated Power 1 W
Relative Humidity 5-95 %
Software Diagnostics Optical input and output power, transceiver temperature
Standards and Approvals IEC 60068-2-27, IEC 60068-2-6
Storage Temperature -40 to 85 deg C
Transition Type 2 kV power line, 1 kV data line
Width 13.4 mm

Description

<p>The SFP-FAST Transceiver is a reliable choice for professionals in the industrial and commercial sectors who require dependable data transmission solutions. Designed to integrate seamlessly into existing systems, this transceiver offers robust performance with its 100 Mbps data rate, making it suitable for a range of networking applications.</p><p>With its compact width of 13.4 mm and compatibility with standard SFP slots, the SFP-FAST ensures easy installation and maintenance. The device supports LC connection types, which are widely used in fiber optic networks due to their small form factor and high performance. This makes it an ideal component for setups that demand efficient space utilization without compromising on connectivity.</p><p>Engineered to perform under various environmental conditions, the transceiver operates effectively within temperatures ranging from 0 to 60 degrees Celsius. It also withstands storage temperatures between -40 and 85 degrees Celsius, ensuring durability even during transportation or when not in active use. The humidity tolerance from 5% to 95% further enhances its reliability across diverse climatic conditions.</p><p>The degree of protection rated at IP20 indicates suitability for indoor environments where exposure to dust or water is minimal. This aligns well with typical deployment scenarios in controlled settings such as data centers or office buildings.</p><p>Compliant with IEC standards (IEC 60068-2-27 and IEC 60068-2-6), the SFP-FAST meets rigorous testing criteria for shock and vibration resistance, underscoring its robustness in dynamic operational environments.</p><p>Supporting both 50/125 mm and 62.5/12.5 mm multimode fiber types, this transceiver facilitates flexible network configurations over distances of up to either 4 km or 5 km depending on specific requirements—ideal for medium-range connections within large facilities like manufacturing plants or corporate campuses.</p><p>Consuming just one watt of power, the transceiver is energy-efficient while still providing reliable performance—a crucial consideration for operations aiming to minimize energy consumption without sacrificing functionality.</p><p>Overall, the SFP-FAST Transceiver delivers a balanced combination of efficiency, adaptability, and compliance with industry standards—attributes essential for any technical setup prioritizing both performance and reliability over extended periods.</p>
