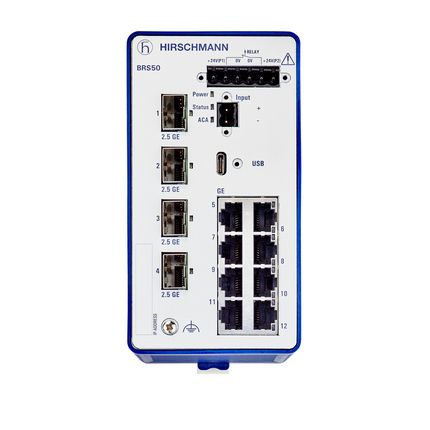

Hirschmann 942 170-010 Managed DIN Rail Mount Switch 4 x 2.5 GIG SFP 8 x GIG TX -Port (2) 12-24VDC

Product Code: 942 170-010

  • Managed switch with DIN Rail mounting
  • Supports 12-24 VDC input voltage
  • Features 4x 2.5G SFP, 8x GIG TX ports
  • Compact size: 73mm W x 138mm H x 115mm D
  • IP30 rated for protection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Managed DIN Rail Mount Switch
Brand HIRSCHMANN
Series BRS50
Degree of Protection IP30
Depth 115 mm
Height 138 mm
Humidity 1-95%
Mounting Type DIN Rail
Number of 100Mb Ports 8
Number of 1GB Ports 8
Number of 2.5GB Ports 4
Number of Ethernet Ports 8
Number of Fibre Ports 4
Number of Ports 4 x 2.5 GIG SFP, 8 x GIG TX
Operational Temperature 0 to 60 deg C
Rated Power 12 W
Rated Voltage (2) 12-24 VDC
Relative Humidity 1- 95 %
Standards and Approvals CE, FCC, EN61131, EN62368-1
Switch Type Switch - Managed
Transition Type 2 kV Power Line, 2 kV Data Line
Width 73 mm

Description

<p>The BRS50 series managed product is a robust and reliable solution designed for industrial and commercial applications where dependable performance is crucial. With a rated power of 12 W, this unit operates efficiently within a voltage range of 12-24 VDC, ensuring adaptability to various power supply conditions.</p><p>One of the standout features of this product is its versatile mounting capability. Designed for DIN rail installation, it offers ease of integration into existing systems, making it an ideal choice for professionals seeking straightforward implementation. The compact dimensions—73 mm in width, 138 mm in height, and 115 mm in depth—allow for efficient use of space without compromising on functionality.</p><p>In terms of connectivity, the BRS50 series doesn&amp;#39;t disappoint. It provides four high-speed 2.5 GIG SFP ports along with eight GIG TX ports, offering ample capacity for data-intensive operations. This makes it particularly suitable for environments that demand high bandwidth and fast data transfer rates.</p><p>Built to withstand challenging conditions, the product operates effectively in temperatures ranging from 0 to 60 degrees Celsius and can handle humidity levels between 1% and 95%. Its IP30 degree of protection ensures adequate safeguarding against dust ingress while being housed indoors.</p><p>Compliance with international standards such as CE, FCC, EN61131, and EN62368-1 underscores its commitment to safety and quality assurance. These certifications provide peace of mind by guaranteeing that the device meets rigorous industry requirements.</p><p>Overall, the BRS50 series managed product delivers a combination of reliability, performance, and compliance suited to meet the demands of today&amp;#39;s industrial landscape effectively.</p>
