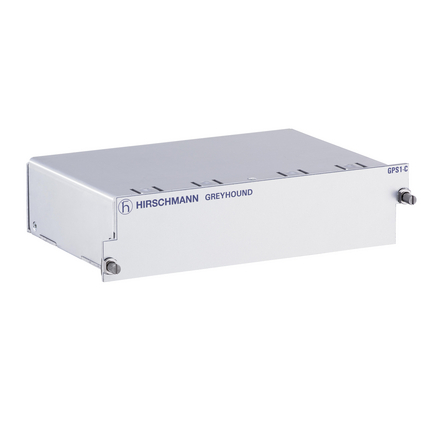

Hirschmann 942 136-004 Power Supply Unit 60-250VDC 110-240VAC For: GRS1040

Product Code: 942 136-004

  • Versatile voltage input: 60-250 VDC, 110-240 VAC
  • Compact design with IP30 protection rating
  • Wide operating temp range: -40 to 70°C
  • Complies with CE, FCC, EN61131 standards
  • Compatible with GRS1040 systems
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Power Supply Unit
Brand HIRSCHMANN
Degree of Protection IP30
Humidity 5-95%
Operational Temperature -40 to 70 deg C
Rated Power 2.5 W
Rated Voltage 60-250 VDC, 110-240 VAC
Relative Humidity 5-95 % (non-condensing)
Standards and Approvals CE, FCC, EN61131, EN60950, cUL60950
Storage Temperature -40 to 85 deg C
Suitable For Use With GRS1040

Description

<p>When selecting a power supply unit (PSU) for industrial and commercial applications, reliability and efficiency are paramount. This particular PSU is designed to meet the demanding needs of various environments, offering a comprehensive range of features that ensure consistent performance.</p><p>The unit delivers a rated power of 2.5 W, making it suitable for low-power applications where energy efficiency is key. It operates across a wide input voltage range from 60-250 VDC and 110-240 VAC, providing flexibility in diverse settings such as remote installations or facilities with variable power sources.</p><p>Designed to withstand challenging conditions, this PSU functions reliably within an operational temperature range of -40 to 70 degrees Celsius. Additionally, it offers excellent storage durability withstanding temperatures from -40 to 85 degrees Celsius. Its robust design ensures stable operation even in extreme climates.</p><p>Humidity resilience is another critical feature; with an operating humidity range from 5% to 95%, this PSU handles both dry and humid environments effectively without compromising performance or safety.</p><p>The degree of protection for this unit is rated at IP30. While not waterproof or dust-tight, IP30 provides adequate protection against solid objects over 2.5 mm in size—suitable for indoor use where exposure to large debris or water isn&amp;#39;t a concern.</p><p>In terms of compliance, the PSU meets several international standards including CE marking for European markets and FCC certification indicating conformity with US communication regulations. Additionally, it adheres to EN61131 and EN60950 standards which relate to programmable controllers and safety requirements respectively—ensuring compatibility with industry practices. The cUL60950 approval further assures users in North America regarding its safety credentials.</p><p>This power supply is particularly compatible with the GRS1040 series devices, ensuring seamless integration into existing systems without complex adjustments or additional components required.</p><p>Overall, this PSU combines versatility and robustness tailored for professionals seeking reliable solutions under varying conditions while adhering strictly to industry standards—a testament to its quality engineering suited for today&amp;#39;s technical demands in Australia’s industrial landscape.</p>
