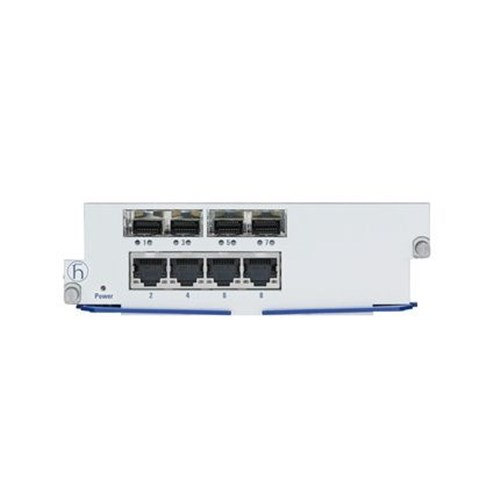

HIRSCHMANN ETHERNET MEDIA MODULE 942 134-999-011

Product Code: 942 134-999-011

Optimize your network's performance with the Hirschmann Greyhound Switch Media Module, a versatile component designed for the GRS1040 series. This module supports both Fast Ethernet and Gigabit Ethernet data rates through its SFP and TX ports. It features four SFP slots (ports 1, 3, 5, and 7) capable of 100/1000 Mbit/s and four TX RJ45 ports (2, 4, 6, and 8) supporting speeds up to 10/100/1000 Mbit/s. Engineered to operate reliably within a temperature range of 0°C to +60°C, this switch module meets rigorous industry standards including CE, FCC, EN 61131, EN 60950, IEC 61850-3, and IEEE 1613 for substation environments. Trust in the quality and durability that Hirschmann delivers with their GREYHOUND GMM Series for advanced network solutions.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 1GB Ports 8
No. of Ethernet Ports 4
No. of Fiber Ports 4
Nominal Power (W) 5.5
Port Quantity and Type 4 x 100/1000MBit/s SFP, 4 x 10/100/1000MBit/s TX RJ45
Brand HIRSCHMANN
Degree of Protection IP30
Dimensions (mm) 41.5H x 135W x 140D
Mounting Type DIN Rail
Operational Temperature Range (°C) 0 to +60
Power Consumption (W) 5.5 - 10W (Without PoE)
Series GREYHOUND GMM
Standards and Approvals CE, FCC, EN61131, EN60950
