Electromagnetic Capability	10 V/m
Electrostatic Discharge (kV)	6 kV Contact Discharge, 8 kV Air Discharge
Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
Relative Humidity	10-95 %
Resistance to Vibrations	1 g, 8,4 Hz - 200 Hz, 30 Cycles
Software Configuration	via USB interface of the switch and via SNMP/Web
Software Diagnostics	writing to ACA, reading from ACA, writing/reading not OK (display using LEDs on the switch)
Brand	HIRSCHMANN
Cable Length (m)	0.5
Connector Type	USB-A
Degree of Protection	IP20
Dimensions (mm)	93W x 29H x 15D
Mounting Type	Plug-In Module
Operational Temperature Range (°C)	-40 - 70
Series	ACA22
Storage Temperature Range (°C)	-40 - 85
Weight (g)	50
Weight (kg)	0.05

Cables & Accessories

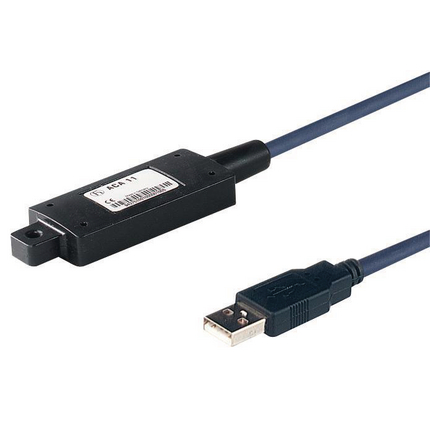

HIRSCHMANN AUTO-CONFIGURATION ADAPTER 512 MB, USB 2.0, EEC 942124001
