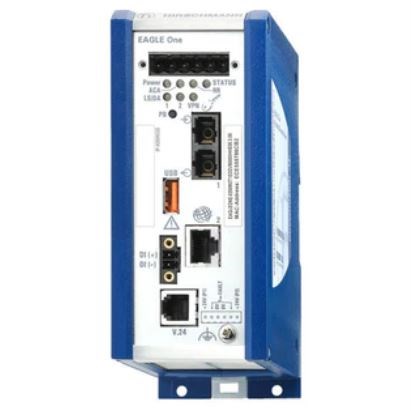

HIRSCHMANN EAGLEONE FIREWALL & SECURITY ROUTER 942 103-999-009

Product Code: 942 103-999-009

Secure your industrial network with the Hirschmann EAGLEONE series, a robust Industrial Firewall and VPN Router System designed to safeguard critical data. This security device features two Ethernet ports capable of 10/100 Mbit/s speeds, each equipped with a reliable twisted pair RJ45 connection. Engineered to withstand extreme temperatures ranging from -40°C to +70°C, it ensures consistent performance in harsh environments. The system is powered by a flexible range of 9.6 to 60 V DC or 18 to 30 V AC, meeting diverse operational requirements. Compliance with CE, FCC, EN 61131, and EN 60950 standards attests to its quality and reliability. Choose Hirschmann for advanced network solutions that keep your infrastructure secure and connected.

Technical Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -40
No. of 100Mb Ports 2
No. of Ethernet Ports 2
Nominal Power (W) 5
Rated Maximum Operational Voltage AC (V) 30
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage AC (V) 18
Rated Minimum Operational Voltage DC (V) 9.6
Brand HIRSCHMANN
Configuration Hirschmann Standard Configuration
Degree of Protection IP20
Mounting Type DIN Rail
No. of Ports 2xFast Ethernet Ports (10/100 Mbit/s), 2xTwisted Pair RJ45
Operational Temperature Range (°C) -40 to +70
Rated Operational Voltage AC (V) 18-30
Rated Operational Voltage DC (V) 9.6-60
Series EAGLEONE
Standards and Approvals CE, FCC, EN 61131, EN 60950
