Product Code: 942 070-999-003

Experience robust and reliable wireless connectivity with Hirschmann's OpenBAT Series Wireless Access Points. These industrial-grade devices are equipped with a versatile ComboPort, offering 10/100/1000 Ethernet connectivity through either an M12-X or SFP interface. Designed to withstand extreme temperatures ranging from -40°C to +70°C, the BAT-R and BAT-F models deliver high-performance IEEE 802.11n WLAN technology, ensuring seamless network solutions for demanding environments. Choose Hirschmann for your wireless network needs and benefit from durable, high-speed communication.

Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
No. of 1GB Ports	1
No. of Fiber Ports	1
Software Modules	WLAN Controller, Industrial HiVision, LANConfig
Brand	HIRSCHMANN
Communication Interface	V.24, USB
Connector Type	3x N socket for each WLAN (for Antenna)
Degree of Protection	IP65/IP67
Dimensions (mm)	219Hx311Wx73D
Housing Material	Metal
Mounting Type	Wall
No. of Ports	1xEthernet ComboPort 10/100/1000
Operational Temperature Range (°C)	+0 to +60
Power Consumption (W)	17.5 (Total Max.)
Rated Operational Voltage DC (V)	Power 1: 24-48, Power 2: 24-48
Series	OpenBAT

Industrial Wi-Fi

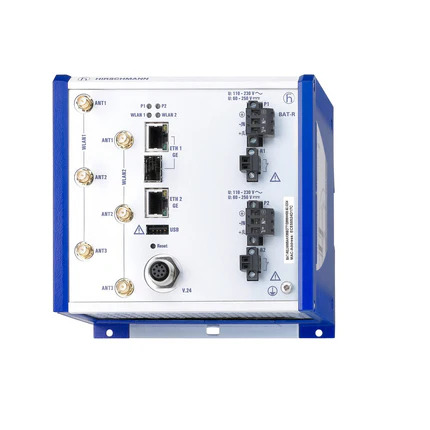

HIRSCHMANN WIRELESS ACCESS POINT 942 070-999-003

Product Code: 942 070-999-003
