Product Code: 942 070-999-002

Experience robust and reliable wireless connectivity with Hirschmann's OpenBAT Series, featuring the BAT-R and BAT-F WLAN devices. These industrial-grade access points are equipped with IEEE 802.11n technology, ensuring efficient network performance. The units boast a ComboPort that supports both RJ45 and SFP connections at 10/100/1000 speeds, alongside a dedicated RJ45 Ethernet port for versatile connectivity options. Engineered to withstand extreme temperatures ranging from -40°C to +70°C, these devices are ideal for challenging environments. As part of Hirschmann's Network Solutions category, the OpenBAT Series stands out as a durable wireless solution for demanding industrial applications.

Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
No. of 1GB Ports	2
No. of Ethernet Ports	1
No. of Fiber Ports	1
Software Modules	WLAN Controller, Industrial HiVision, LANConfig
Brand	HIRSCHMANN
Communication Interface	V.24, USB
Connector Type	3× RP-SMA Female, 1xRP-SMA Male connector (for Antenna)
Degree of Protection	IP20
Dimensions (mm)	145Hx151Wx121D
Housing Material	Metal
Mounting Type	DIN Rail
No. of Ports	1xEthernet ComboPort 10/100/1000 via RJ45 or SFP , 1xEthernet 10/100/1000 via RJ45
Operational Temperature Range (°C)	+0 to +60
Power Consumption (W)	17.5 (Total Max.)
Rated Operational Voltage DC (V)	Power 1: 24-48, Power 2: 24-48
Series	OpenBAT
Weight (kg)	1.5

Industrial Wi-Fi

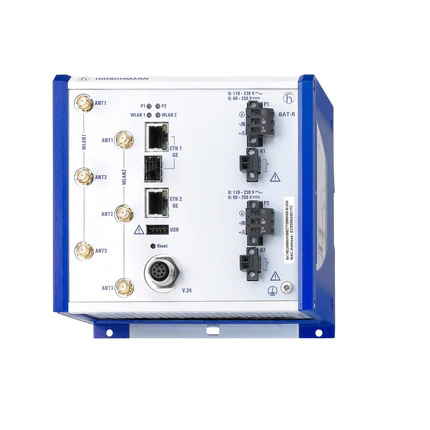

HIRSCHMANN WIRELESS ACCESS POINT 942 070-999-002

Product Code: 942 070-999-002

Technical Specifications
