Product Code: 942 070-999-001

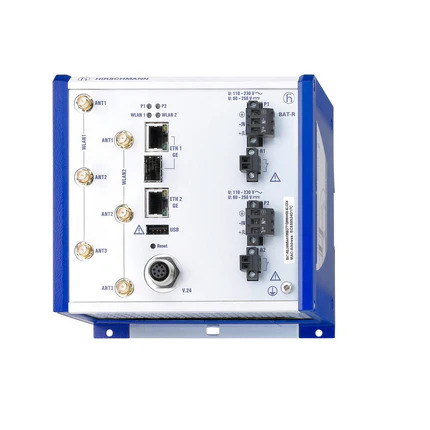

Experience robust and reliable wireless connectivity with Hirschmann's OpenBAT Series Wireless Access Points. Designed for industrial environments, these devices offer IEEE 802.11n WLAN technology to ensure stable and secure network performance. The BAT-R and BAT-F models feature a versatile ComboPort that supports both RJ45 and SFP connections at 10/100/1000 speeds, along with an additional RJ45 port for gigabit Ethernet connectivity. Engineered to withstand extreme temperatures ranging from -40°C to +70°C, these access points are ideal for challenging conditions. Trust in Hirschmann's expertise in Network Solutions to keep your operations connected and efficient.

Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
No. of 1GB Ports	2
No. of Ethernet Ports	1
No. of Fiber Ports	1
Software Modules	WLAN Controller, Industrial HiVision, LANConfig
Brand	HIRSCHMANN
Communication Interface	V.24, USB
Connector Type	3× RP-SMA Female, 1xRP-SMA Male connector (for Antenna)
Degree of Protection	IP20
Dimensions (mm)	145Hx151Wx121D
Housing Material	Metal
Mounting Type	DIN Rail
No. of Ports	1xEthernet ComboPort 10/100/1000 via RJ45 or SFP , 1xEthernet 10/100/1000 via RJ45
Operational Temperature Range (°C)	+0 to +60
Power Consumption (W)	17.5 (Total Max.)
Rated Operational Voltage DC (V)	Power 1: 24-48, Power 2: 24-48
Series	OpenBAT
Standards and Approvals	Substation-IEC/EN 61850-3:2014, IEEE 1613:2009
Weight (kg)	1.5
