Product Code: 942 058-999-005

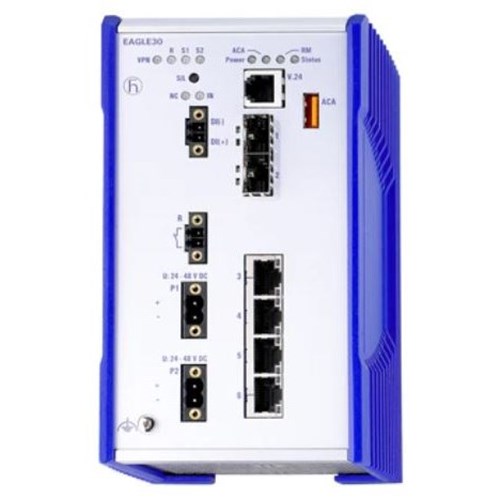

The Hirschmann EAGLE30 is a robust security router designed for industrial network solutions. It features four Ethernet ports with 10/100 Mbit/s speed, including two twisted pair RJ45 ports and two SFP slots for uplink connectivity. This device operates reliably within a temperature range of 0°C to +60°C and is powered by dual 24/36/48 V DC inputs. The EAGLE30 meets stringent industry standards, holding CE, FCC, EN 61131, and EN 60950 certifications. As part of the security devices category, this router ensures secure data communication across your network infrastructure.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of 100Mb Ports	4
No. of Ethernet Ports	4
Nominal Power (W)	19
Rated Maximum Operational Voltage DC (V)	60
Rated Minimum Operational Voltage DC (V)	18
Brand	HIRSCHMANN
Degree of Protection	IP20
Included	Layer 3 Firewall Software
Mounting Type	DIN Rail
No. of Ports	4xFast Ethernet Ports (10/100 Mbit/s), Twisted Pair RJ45
Operational Temperature Range (°C)	+0 to +60
Rated Operational Voltage DC (V)	2 x 24/36/48
Series	EAGLE30
Standards and Approvals	CE, FCC, EN 61131, (EN 60950)

Security Devices

HIRSCHMANN EAGLE20 FIREWALL & SECURITY ROUTER 942 058-999-005

Product Code: 942 058-999-005

Technical Specifications
