Product Code: 88001145510

The variable speed drive is designed for 3-phase power supply with a voltage range of 380 - 480VAC and a power output of 75kW. In normal use, it has an output current of 145A and a power output of 75kW. In heavy-duty use, the output current is 105A and the power output is 55kW. It has a total of 6 digital inputs and 5 digital outputs, as well as 2 analog inputs and 2 analog outputs. The communication protocol used is Modbus RTU. The drive can be mounted on a wall and has an IP55 rating, making it suitable for various industrial applications. It also features an EMC filter for protection against electromagnetic interference in second environment C3 conditions. Additionally, the drive includes a brake chopper and supports synchronous reluctance motors (SynRM).

No. of Analogue Inputs	2
No. of Analogue Outputs	2
No. of Digital Inputs	6
No. of Digital Outputs	2
No. of Relay Outputs	3
Output Current - Heavy Duty (A)	105
Output Current - Light Duty (A)	138
Output Current - Normal Duty (A)	145
Output Power - Heavy Duty (kW)	55
Output Power - Light Duty (kW)	75
Output Power - Normal Duty (kW)	75
Brand	ABB
Ambient Temperature Range (°C)	-15 to 40 (No frost allowed)
Communication	EIA-485 (Modbus)
Degree of Protection	IP55
Dimensions (mm)	726H x 251W x 421D
No. of Phases	3
Rated Supply Voltage AC (V)	380 - 415
Reference No.	ACS880-01-145A-3+B056+D150+E200+N7502+P904+R700
Series	ACS880
Size of Frame	R6

Variable Speed Drives

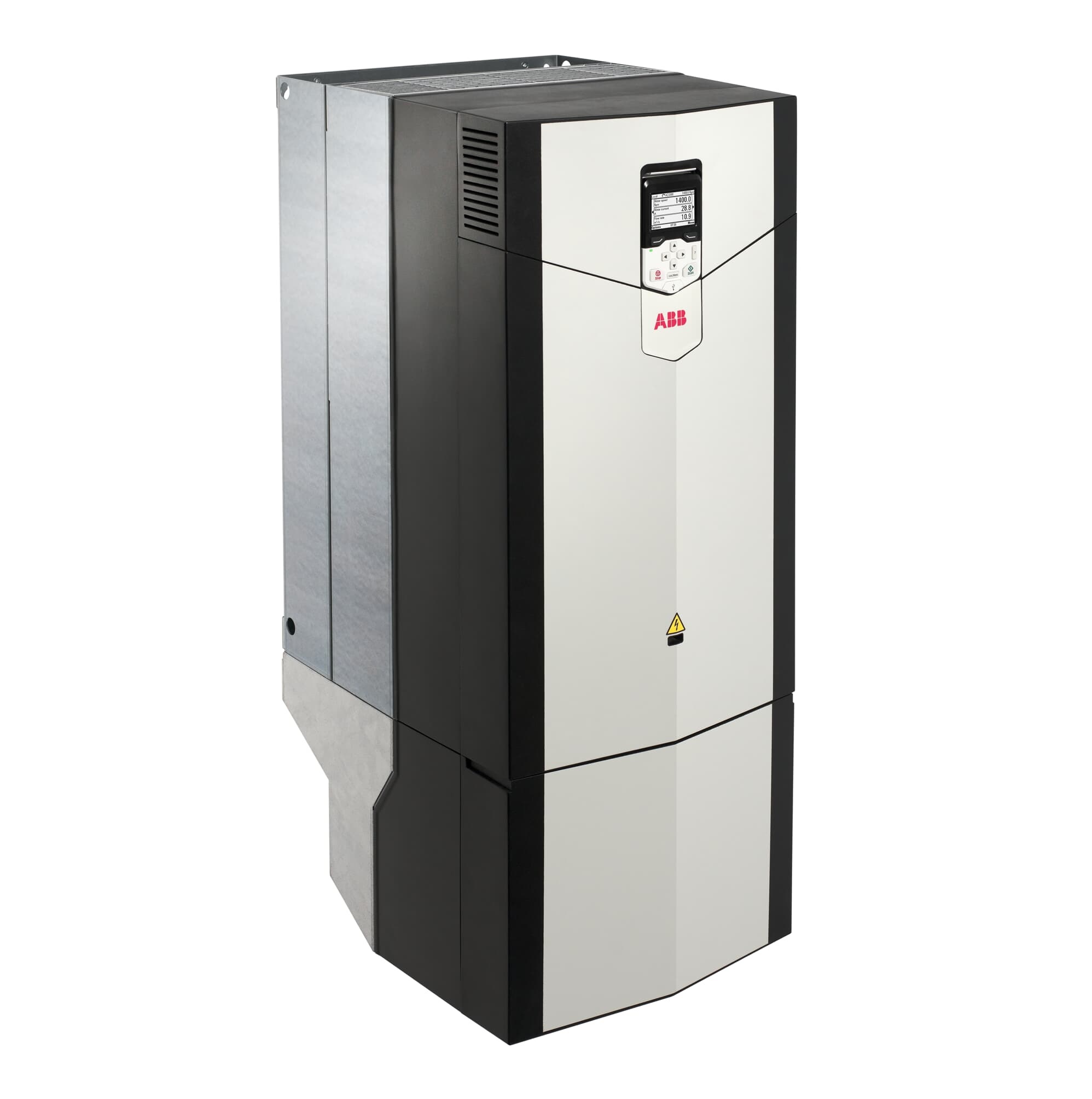

ABB ACS880 75KW 145A IP55 INDUSTRIAL DRIVE W/ B'CP ACS880-01-145A-3+B056+D150+E20
