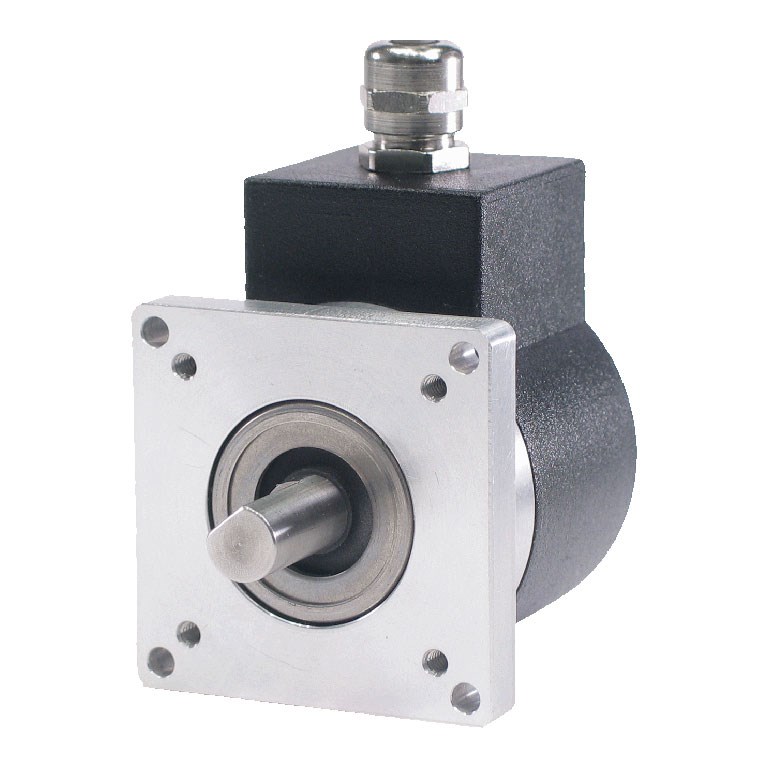

The 702 Series Encoder Sensor is a reliable choice for professionals in the industrial and commercial sectors seeking precision and durability. This encoder sensor operates effectively within a voltage range of 4.75 to 24 VDC, ensuring compatibility with various systems while maintaining an efficient current consumption of just 100 mA.
Designed with a line driver output type, this encoder guarantees robust signal integrity over long distances, making it suitable for demanding applications where signal degradation could be an issue. The mounting configuration features a 50.8 mm square flange with a 30 mm female pilot, offering secure and straightforward installation options.
Built to withstand challenging conditions, the encoder boasts an impressive humidity tolerance of up to 98%, coupled with an IP50 degree of protection that offers substantial resistance against dust ingress. While not fully waterproof, its design provides adequate protection for environments where moisture is controlled.
Operating efficiently across temperatures ranging from 0 to 85 degrees Celsius, this sensor can handle significant temperature fluctuations typical in many industrial settings. Its vibration resistance spans frequencies from 58-500 Hz, ensuring stable performance even in high-vibration environments.
The encoder delivers precise measurements with its capability of producing 100 pulses per revolution (PPR), ideal for applications requiring accurate position feedback or speed monitoring. With a maximum shaft speed rating of up to 8000 RPM and accommodating a shaft size of 6 mm, it meets the requirements for rapid operations without compromising on accuracy or reliability.
Whether you're integrating into new systems or upgrading existing setups, the versatility and resilience of the 702 Series Encoder Sensor make it an excellent component for enhancing operational efficiency across various industries.
