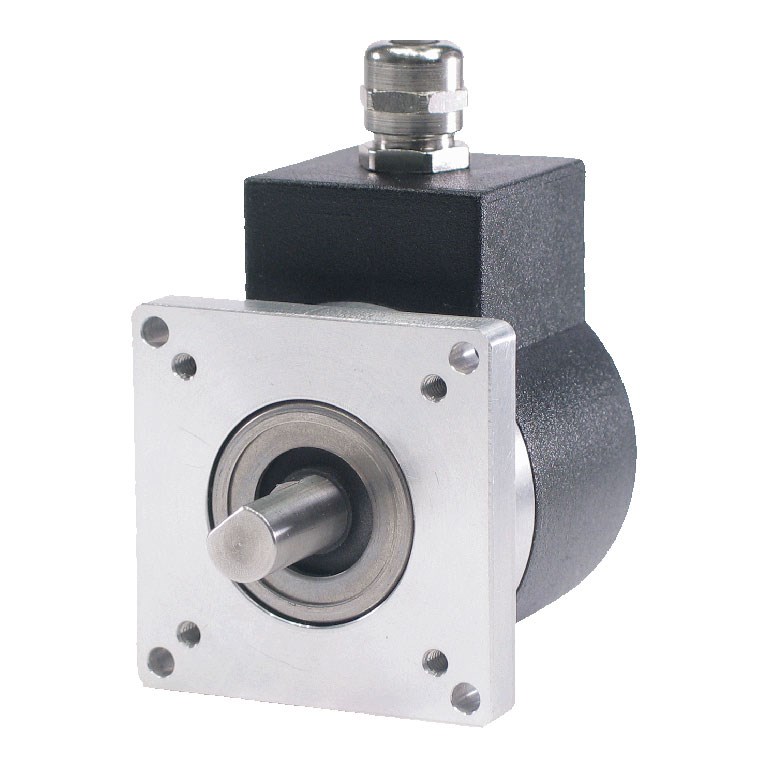

In the realm of precision measurement and control, the encoder sensor stands as a pivotal component for industrial automation systems. With its robust design and reliable performance, this encoder sensor is tailored to meet the demanding needs of various applications.
Operating on a rated voltage range of 4.75-24 VDC, it ensures versatility in power supply compatibility. The rated current is maintained at 100 mA, making it an energy-efficient choice for continuous operations. Its output type is push-pull, offering flexibility in interfacing with different control systems while ensuring consistent signal integrity.
The mounting configuration features a 50.8 mm square flange and a 30 mm female pilot, providing stable installation options suitable for diverse machinery setups. This encoder sensor boasts an impressive humidity resistance up to 98%, allowing it to function effectively in moist environments without compromising performance.
With an IP50 degree of protection, this device offers solid resistance against dust ingress while maintaining operational efficiency within its specified limits. It operates smoothly across temperatures ranging from 0 to 85 degrees Celsius, making it adaptable to various environmental conditions found in industrial settings.
Vibration resistance between frequencies of 58-500 Hz highlights its durability under mechanical stress—an essential feature for equipment subject to constant motion or vibration. Delivering precise feedback with a resolution of 1000 pulses per revolution (PPR), this encoder sensor ensures accurate position tracking critical for automated processes.
It supports shaft speeds up to 8000 RPM and accommodates a shaft size of 10 mm—features that underscore its capability to handle fast-paced operations while maintaining precision and reliability over extended periods.
This encoder sensor combines technical prowess with practical design elements suited for professionals seeking dependable solutions in automation technology.
