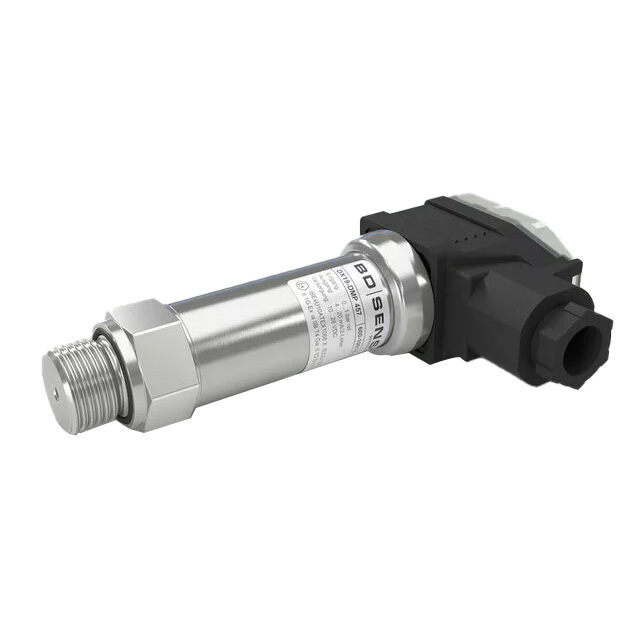

BD Sensors 600600113G103001000 Pressure Transmitter

Product Code: 600600113G103001000

  • Stainless steel for durability
  • 4-20 mA output for consistent signals
  • High accuracy: 0.35% FSO
  • Wide temp range: -40 to 125°C
  • Fast response time: <=10 ms
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series DMP 457
Accuracy >=0.4 bar, 0.35% FSO
Application Diesel Engines, Drives, Compressors, Pumps, Boiler, Hydraulic and Pneumatic Control Systems.
Electrical Connection Male and Female Plug ISO 4400
Mechanical Stability 4 g (according to DNV: class B, curve 2 / basis: IEC 60068-2-6).
Mechanical Connection G1/4 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 6 bar
Response Time <=10 ms
Seal Material FKM
Version Standard

Description

<p>The DMP 457 Stainless Steel Sensor is a robust solution for industrial and commercial applications, specifically designed to meet the demands of rigorous environments. This sensor offers reliable performance with its output type of 4-20 mA, which is widely recognized for providing precise and consistent signal transmission over long distances.</p><p>With an impressive accuracy of greater than or equal to 0.4 bar at 0.35% Full Scale Output (FSO), this sensor ensures that your operations maintain high precision standards, crucial in processes where exact measurements are vital. The rated pressure capacity stands at 6 bar, making it suitable for various pressure monitoring tasks across different sectors.</p><p>One of the standout features of the DMP 457 is its wide operational temperature range from -40 to 125 degrees Celsius. This capability allows it to function effectively in both extremely cold and hot conditions without compromising performance, making it ideal for diverse Australian climates.</p><p>The mechanical life span extends up to an outstanding ten million operations, ensuring longevity and reducing the need for frequent replacements or maintenance interventions. For ease of installation and integration into existing systems, the sensor includes a G1/4 inch DIN 3852 mechanical connection alongside male and female plug options conforming to ISO 4400 standards for electrical connections.</p><p>In terms of responsiveness, this sensor boasts a rapid response time of less than or equal to ten milliseconds. Such swift response times are essential in dynamic environments where real-time data acquisition can significantly impact decision-making processes.</p><p>Additionally, the seal material made from FKM enhances its durability by providing excellent resistance against chemicals and high temperatures commonly encountered in industrial settings. This feature ensures that the sensor maintains integrity even under harsh conditions.</p><p>Overall, the DMP 457 Stainless Steel Sensor combines reliability with advanced technical specifications tailored for demanding applications. Its comprehensive design supports efficient operation while minimizing downtime due to its robust construction and superior materials used throughout its assembly process.</p>
