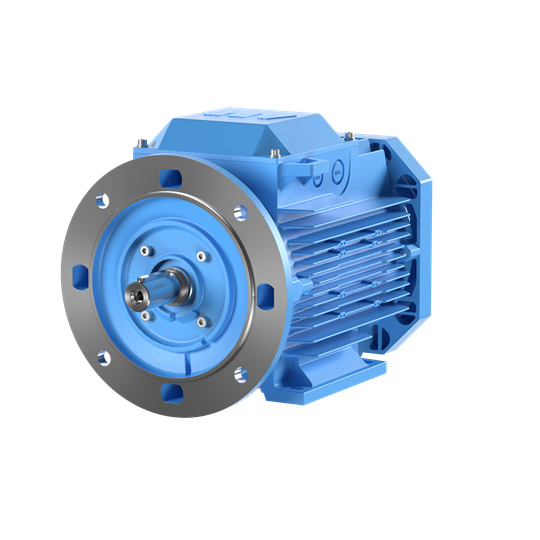

ABB IE3 ALUMINUM MOTOR 4P 4kW 400VD FOOT/BIG FLANGE MOUNT B35 IP55 M3AA112MB 3GAA112320-HDK

Product Code: 3GAA112320-HDK

Technical Specifications

Brand ABB
Efficiency IE3
Frame Size 112
Motor Designation Process Performance - Aluminum Motor
Motor Poles 4
Mounting Method Foot/flange-mounted, term. box top, IM B35, IM 2001
Output Power (kW) 4
Rated Power (kW) 4
Voltage (V) 690Y/415D
Colour Blue
Connection Type DELTA - 415V in D & 690V in Y
Degree of Protection IP55
Dimensions (mm) 495 X 290 X 335
Phases 3
Rated Voltage (V) 690Y/415D
Weight (kg) 47.14
