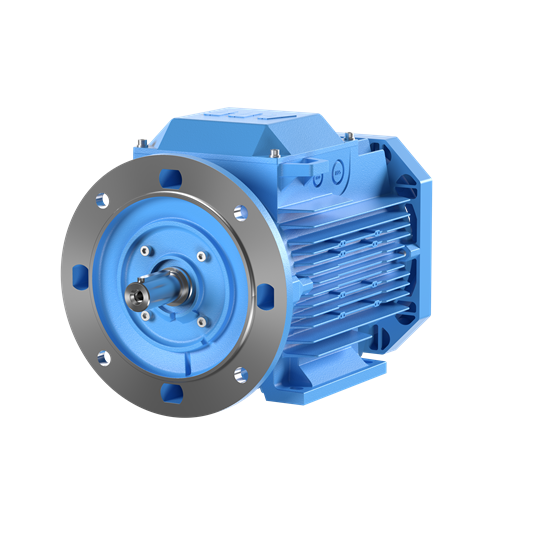

ABB 3GAA111320-HDK Low Voltage Motor IEC 112 Aluminium 2P 3PH 4kW 400V Foot Large Flange Mounting IP55

Product Code: 3GAA111320-HDK

  • 4 kW power, ideal for robust applications
  • IP55 protection for dust and water resistance
  • Aluminium frame ensures durability and lightweight
  • Operates efficiently at 88.5%
  • Dual rotation direction capability
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed Process Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type DELTA - 415V in D & 690V in Y
Degree of Protection IP55
Depth 431 mm
Efficiency 88.5%
Frame Size IEC 112
Height 260 mm
Insulation Class ICLF
Material Aluminium
Mounting Type Foot, Large Flange
Number of Poles 2
Phase 3
Power Factor 0.91
Rated Current 7.1 A
Rated Frequency 50 Hz
Rated Power 4 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 68 dBA
Speed Rating 2888 RPM
Torque Rating 13.2 N-m
Weight 38 kg
Width 222 mm

Description

<p>When it comes to finding a reliable and efficient motor for industrial and commercial applications, this Process Performance Motor stands out with its robust design and impressive specifications. Designed to meet the demands of various operational environments, this motor is engineered with precision to ensure optimal performance.</p><p>At the heart of its functionality is a rated power of 4 kW, making it suitable for medium-duty tasks that require consistent power delivery. Operating at a rated voltage of 400 V and a frequency of 50 Hz, this motor aligns well with standard Australian electrical systems, ensuring compatibility and ease of integration.</p><p>The motor boasts an efficiency rating of 88.5%, which means it effectively converts electrical energy into mechanical energy while minimizing losses. This high efficiency not only reduces energy consumption but also contributes to lower operating costs over time—a crucial consideration for businesses looking to optimize their resources.</p><p>Constructed from durable aluminium material, the motor maintains a lightweight profile at 38 kg without compromising on strength or durability. Its dimensions—222 mm in width, 260 mm in height, and 431 mm in depth—alongside its mounting options (foot or large flange), provide flexibility for installation in varied settings.</p><p>With an IP55 degree of protection, this motor is well-protected against dust ingress and water jets from any direction. This makes it suitable for environments where exposure to such elements might be prevalent. The ambient temperature tolerance up to 40&amp;#176;C further emphasizes its ability to perform under challenging conditions.</p><p>The sound level is maintained at a manageable 68 dBA, ensuring that noise pollution remains minimal during operation—a significant advantage in maintaining workplace comfort levels.</p><p>For those concerned about torque capabilities, this motor delivers with a torque rating of 13.2 N-m and supports rotation in both directions—adding versatility depending on your application&amp;#39;s requirements. The speed rating reaches up to an impressive 2888 RPMs providing swift response times when needed.</p><p>Furthermore, the insulation class ICLF ensures safety by effectively managing heat dissipation within the system—a critical factor for long-term reliability.</p><p>Finished in Munsell Blue color scheme adds aesthetic value while adhering strictly functional purposes as per industry standards</p><p>In summary if you&amp;#39;re seeking dependable solution backed by solid technical credentials look no further than these Process Performance Motors tailored specifically meet industrial needs efficiently effectively</p>
