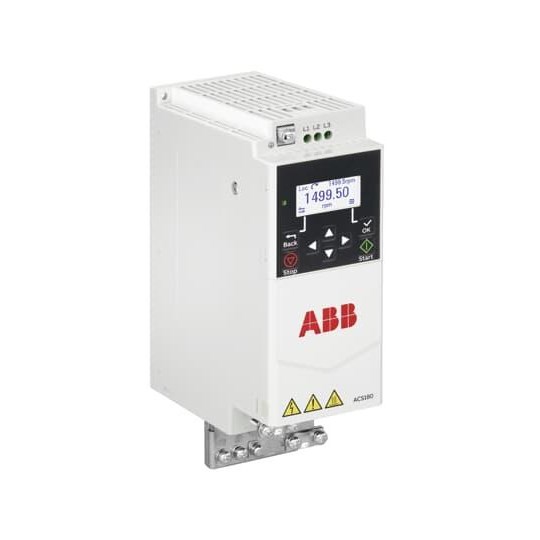

ABB ACS180 3KW 7.2A IP20 MACHINERY DRIVE W/ CP ACS180-04S-07A2-4 3AXD50000716678

Product Code: 3AXD50000716678

The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.

Technical Specifications

Contains Control Element PC Connection
Maximum Output Frequency (Hz) 599
Maximum Output Voltage AC (V) 480
No. of Analogue Inputs 1
No. of Analogue Outputs 2
No. of Digital Inputs 4
No. of Digital Outputs 2
Nominal Output Current (A) 7.2
Number of Other HW Interfaces 1
Number of RS-485 Interfaces 1
Output Power - Normal Duty (kW) 3
Relative Symmetric Net Frequency Tolerance 5%
Relative Symmetric Net Voltage Tolerance 10%
Brand ABB
Communication Protocols MODBUS
Application Domestic & Commercial
Dimensions (mm) 70W x 220H x 143D
EAN 6438177649243
Input Voltage AC (V) 380 - 480
