Product Code: 3AXD50000038951

The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.

Contains	Control Element PC Connection
Maximum Output Frequency (Hz)	500
Maximum Output Voltage AC (V)	480
No. of Analogue Inputs	2
No. of Analogue Outputs	2
No. of Digital Inputs	6
No. of Digital Outputs	3
Nominal Output Current (A)	7.2
Number of Other HW Interfaces	2
Number of Parallel Interfaces	2
Number of RS-485 Interfaces	1
Number of USB Interfaces	1
Output Power - Normal Duty (kW)	3
Relative Symmetric Net Frequency Tolerance	5%
Relative Symmetric Net Voltage Tolerance	10%
Brand	ABB
Communication Protocols	TCP/IP PROFIBUS CAN MODBUS DeviceNet / DeviceNet Safety PROFINET IO EtherNet/IP Other Bus Systems
Application	Industrial, Commercial & Domestic
Dimensions (mm)	125W x 373H x 223D
EAN	6438177459217
Input Voltage AC (V)	380 - 480

Variable Speed Drives

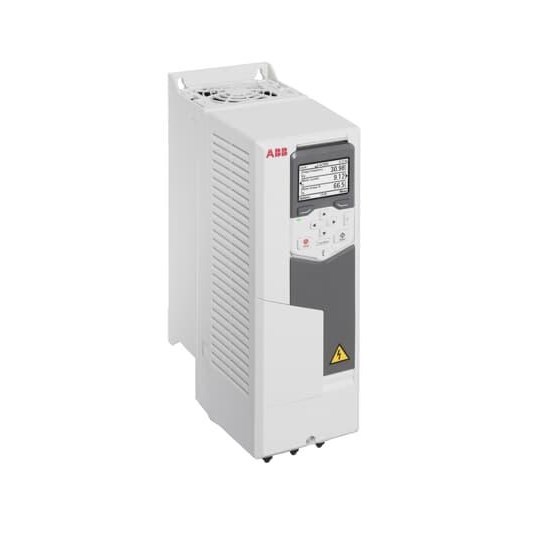

ABB ACS580 3KW 7.3A IP21 GENERAL PURPOSE DRIVE W/ CP ACS580-01-07A3-4+J400
